Crestron SAROS IC4P 3" In-Ceiling Speaker (Single)
Crestron SAROS IC4P 3" In-Ceiling Speaker (Single)
Crestron SAROS IC4P 3" In-Ceiling Speaker (Single)
Crestron SAROS IC4P 3" In-Ceiling Speaker (Single)

Crestron SAROS IC4P 3" In-Ceiling Speaker (Single)

by Crestron
SKU 6513070
€458.00 - €458.00 excl. VAT
€563.34 - €563.34 incl. IE VAT
€458.00 excl. VAT
€563.34 incl. IE VAT
€ via quote
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: White Textured

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

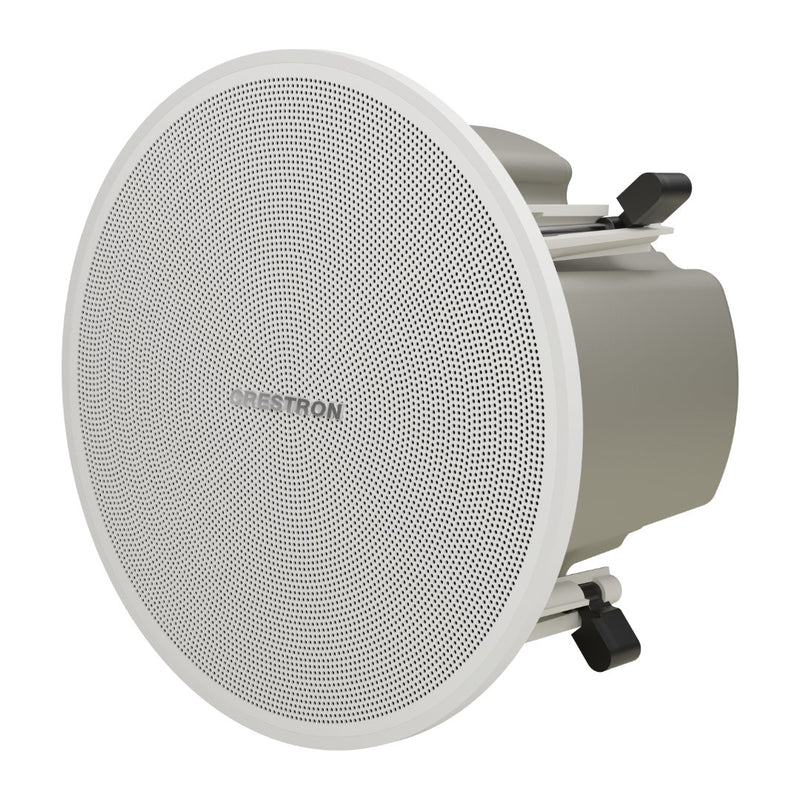

The Crestron Saros® IC4P is a high-performance 3-inch in-ceiling speaker designed to deliver professional-grade audio performance in a sleek, contemporary package. Ideal for a variety of commercial applications, the Saros IC4P features a Balanced Mode Radiator (BMR) transducer for enhanced clarity and wider dispersion compared to traditional conical drivers.

Key Features

  • Balanced Mode Radiator (BMR) transducer for enhanced clarity and wider dispersion
  • Clean, contemporary grille design
  • Two-step toggle clamps for quick and easy installation
  • Includes tile bridge for installation in a drop-tile ceiling
  • 90 Hz to 30 kHz frequency response
  • 170° coverage for speech content, 140° coverage for music
  • Paintable to blend with surroundings

Performance

The Saros IC4P is designed for quick and easy installation and years of reliable performance. Its unobtrusive and contemporary grille achieves an appearance well-suited for use in restaurants, retail spaces, houses of worship, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place.

Installation

Mounting the speaker is facilitated using swiveling mounting dogs integrated into the enclosure. The mounting dogs feature two positions to accommodate standard and extra thick surfaces up to 2.4 in. (61 mm). A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning and can be folded to fit through the speaker cutout. A rigging point is also provided on the speaker enclosure for securing to the building structure using an optional safety tether kit (SPKA-ST-15, sold separately).

Plenum Rated

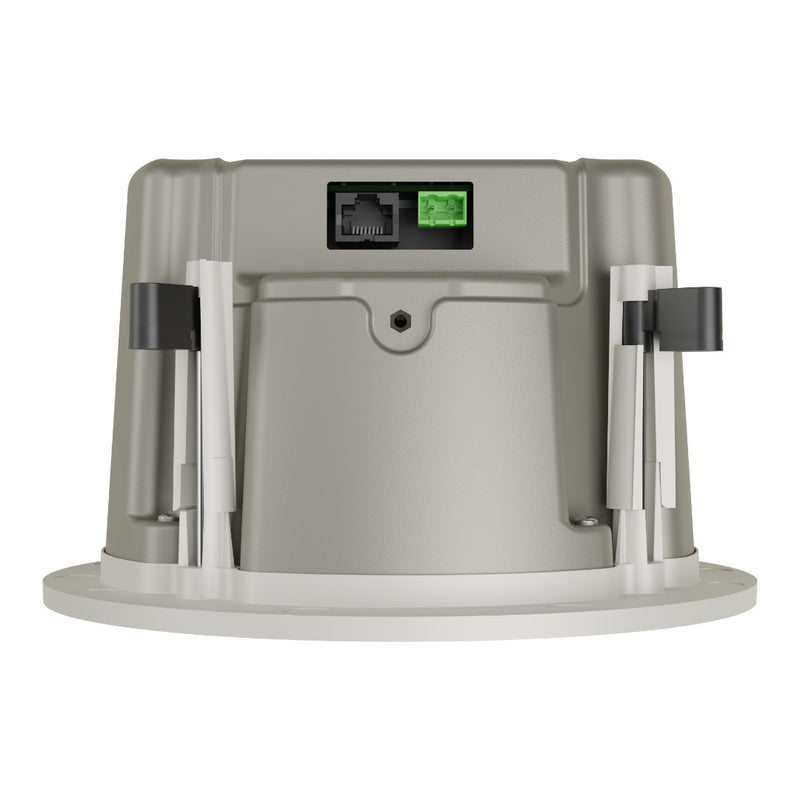

The speaker is housed in an integral metal back can, which meets the requirements of UL® 2043 for installation in a plenum space. The wiring connections are accessible behind a rear cover panel. Two mutually exclusive inputs are available, an RJ-45 connector to receive a signal from the outputs of a SAROS DM-NAX-IC4A-W (sold separately) and a two-pin terminal block connector to receive a signal from an external audio amplifier. For a plenum-rated patch cable, use CBL-ZUMLINK-P-25 (sold separately) or a third-party CAT5 cable 32 ft. (10 m) or shorter.

Specifications

  • Transducer: 2.83 in. (72 mm) Balanced Mode Radiator (BMR)
  • Frequency Response: 90 Hz to 30 kHz (±3 dB)
  • Sensitivity: 86 dB @ 1 W/1 m
  • Coverage: 170° conical (speech, up to 4 kHz); 140° conical (music, up to 8 kHz)
  • BMR Power Handling: 25 W

BMR Max Power Output:

  • 25 W, connected to an external amplifier via 2-pin audio input
  • 10 W, connected to the SPEAKER-LEVEL OUTPUT of a SAROS DM-NAX-IC4-A
  • 6.5 W, connected to the SPEAKER-LEVEL OUTPUT of a SAROS DM-NAX-IC4-A with one other SAROS IC4-P connected
  • 4.5 W, connected to the SPEAKER-LEVEL OUTPUT of a SAROS DM-NAX-IC4-A with two other SAROS IC4-P connected

Weights & Dimensions

  • Diameter: 7.49 in. (191 mm) not including mounting clamps
  • Depth: 4.28 in. (109 mm) mounting depth; 4.50 in. (115 mm) including grille
  • Weight: 2.35 lb (1.06 kg)
