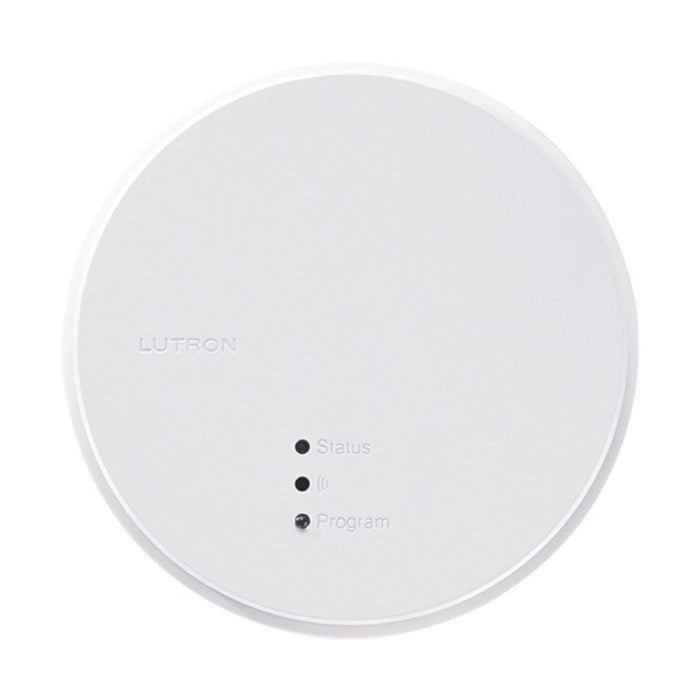

Lutron HomeWorks QS Sensor Module (Wired)

Lutron HomeWorks QS Sensor Module (Wired)

by Lutron
SKU QSMX-4W-C
€255.00 - €255.00 excl. VAT
€313.65 - €313.65 incl. IE VAT
€255.00 excl. VAT
€313.65 incl. IE VAT
€255.00 - €255.00 excl. VAT
€313.65 - €313.65 incl. IE VAT
€ via quote
Availability: 5 in stock

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Lutron HomeWorks QS Wireless Sensor Module (QSM) is a ceiling-mounted device designed to integrate Lutron wireless and wired sensors with HomeWorks QS systems through the wired QS Link. This module enhances the flexibility and scalability of your lighting control system, allowing seamless communication with up to 10 Radio Powr Savr occupancy/vacancy sensors and 10 Pico wireless controls, as well as up to four Lutron wired occupancy sensors.

Features

  • Integrates with HomeWorks QS systems via QS Link
  • Supports up to 10 Radio Powr Savr wireless sensors and 10 Pico wireless controls
  • Connects up to four Lutron wired occupancy sensors
  • Powered by QS Link, no line voltage connections required
  • Uses Clear Connect RF Technology for reliable communication
  • Power failure memory retains settings upon power restoration

Specifications

  • Model Numbers: QSM3-4W-C (Wireless w/ 4 wired Inputs) / QSMX-4W-C (Wired only model w/ 4 wired inputs)
  • Power: 24 V- 400 mA max (wired input), 100 mA max (no wired input)
  • Typical Power Consumption: 1.5 W; 3 Power Draw Units (PDUs), plus 2 PDUs for each wired sensor
  • Regulatory Approvals: cUL US, FCC, IC, SCT, CE, TRA, WPC
  • Operating Environment: 32°F to 104°F (0°C to 40°C), 0% to 90% humidity, non-condensing
  • Wiring: QS Link and wired inputs use 22 to 14 AWG (0.5 to 2.5 mm²) IEC PELV/NEC Class 2 wiring
  • Maximum QS Link length: 2000 ft (610 m)

Mounting and Installation

  • Mount QSM units in the center of non-metal ceiling tile or drywall for optimal wireless range
  • Avoid mounting near metal objects to prevent RF range reduction
  • Models available for ceiling mount and junction box ceiling mount
  • Dimensions: Ceiling thickness range for -C models: Min: 0.30 in (7.62 mm) to Max: 1.20 in (30.48 mm)

Wiring

  • Use Lutron cable GRX-CBL-346S (standard) or GRX-PCBL-346S (plenum)
  • Maximum wired input wire length: 150 ft (46 m) per input

Applications

The HomeWorks QS Wireless Sensor Module is ideal for integrating multiple occupancy/vacancy sensors and Pico wireless controls in residential and commercial lighting control systems, enhancing automation and energy efficiency.
