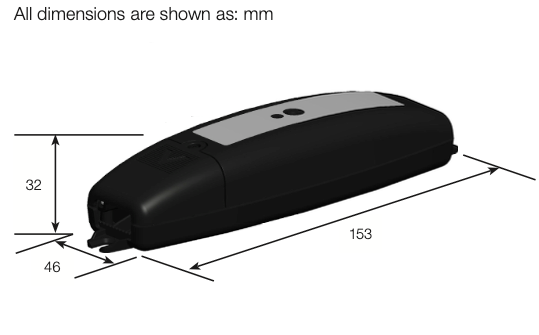

Lutron RadioRA 3 in-line ceiling fan speed control dimensions diagram: 153 x 46 x 32 mm matte black low-profile housing.

Lutron RadioRA 3 In-Line Ceiling Fan Speed Control

by Lutron
SKU RR3K-RNFSQ-240
€162.12 - €162.12 excl. VAT
€199.41 - €199.41 incl. IE VAT
excl. VAT
€0.00 incl. IE VAT
€ via quote
€ via quote
Availability: With 2 to 3 weeks lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Lutron RadioRA 3 In-Line Ceiling Fan Speed Control adds four-speed wireless control to a standard residential AC ceiling fan. The module mounts in-line in the ceiling void above the fan and joins the RadioRA 3 system over Lutron's Clear Connect RF, so fan speed can be set from any Vierti keypad, a Pico remote, the Lutron app, or a programmed scene.

How it works

  • Four fan speeds: low, medium, medium-high and high. Each speed is individually tuneable in the Lutron app to suit the specific fan.
  • Rated for one AC ceiling fan up to 100 W, 220 to 240 V, 50 / 60 Hz.
  • Neutral required.
  • Lutron Clear Connect Type A wireless at 868 MHz. Works independently of Wi-Fi.
  • Range: within 9 m of a RadioRA 3 processor or wireless repeater. Up to four repeaters can be added to extend coverage to 18 m line-of-sight per RF link.
  • Self-verification: on first power-up before pairing, the fan control runs the fan for two minutes so the installer can confirm correct wiring.
  • Remote device association lets the module be added to a system without physically accessing it after installation.

Compatible fans

Use to control one standard AC ceiling fan.

Not compatible with: DC motor fans, fans with integrated light control modules, fans with their own remote controls, Wi-Fi only fans, or shaded-pole motor fans (typical bathroom and kitchen exhaust fans).

Specifications

  • Model: RR3K-RNFSQ-240
  • Dimensions: 153 x 46 x 32 mm
  • Wiring: 0.5 to 2.5 mm² conductors, outside diameter 5.2 to 8.5 mm, all wires same diameter
  • Typical power consumption: less than 0.5 W
  • Operating environment: 0 to 40 °C, 0 to 90% humidity non-condensing, indoor use only
  • Mounting clearance: 120 mm from insulation, heat sources and metal surfaces. Not for installation inside metal enclosures or behind metal ceilings.
  • Approvals: CE, UKCA, RoHS, ISO 9001:2015

Professional installation across Ireland

Designed, supplied, programmed and commissioned by Formwave, Lutron specialist installers based in Dublin and serving residential clients across Ireland.
