Lutron RadioRA 3 Vierti Hybrid Keypad, 1-Column Bulk

Lutron RadioRA 3 Vierti Hybrid Keypad, 1-Column Bulk

by Lutron
SKU RRE-HDS-1
Sold out
€301.08 - €301.08 excl. VAT
€370.33 - €370.33 incl. IE VAT
excl. VAT
€0.00 incl. IE VAT
€ via quote
€ via quote
Availability: Backordered

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

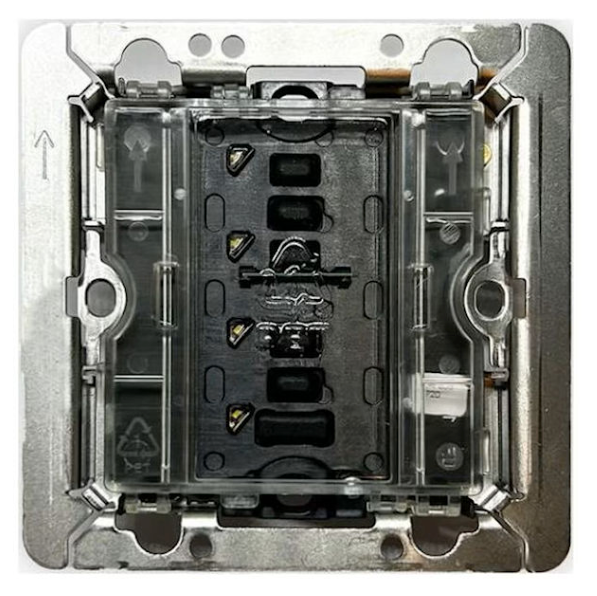

The Lutron RadioRA 3 Vierti Hybrid Keypad combines a scene-control keypad and an internal LED+ dimmer into a single device. Ideal for retrofit work because it replaces a wall switch and a keypad with one unit. This is the 1-column bulk model: includes the keypad and mounting plate, no wallplate or button kit (sold separately).

Key specifications

  • Voltage: 220 to 240V, 50/60Hz
  • Power consumption: 0.5W typical, 1.5W max
  • Communications: Clear Connect Type X, 2.4GHz RF
  • Mounting: square backbox, 35mm minimum or 47mm recommended depth
  • Wiring: live, neutral and dimmed live; 0.5 to 2.5mm² conductors
  • Max load LED: 1A or 150W with neutral
  • Max load ELV LED or Halogen: 250W, neutral required
  • Max load Incandescent and Halogen: 250W
  • Range: within 23m of the processor; needs two or more Clear Connect Type X devices within 6m

In the box

  • Bulk keypad
  • Mounting plate
  • Construction cover

Sold separately

  • Wallplate: LW-S-C1-XX (1-gang, 1-column)
  • Button kit: C1BK predefined or personalised
  • Backbox: EBB-1-SQ recommended
