Control4 CORE 1 Controller

Control4 CORE 1 Controller

by Control4
SKU C4-CORE1
€875.00 - €875.00 excl. VAT
€1,076.25 - €1,076.25 incl. IE VAT
€875.00 excl. VAT
€1,076.25 incl. IE VAT
€875.00 - €875.00 excl. VAT
€1,076.25 - €1,076.25 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Control4 CORE 1 Controller is a powerful, compact automation hub designed to fit discreetly behind any television. It brings a beautiful 4K on-screen interface to enhance entertainment and automation experiences in residential, commercial, and retail spaces. CORE 1 seamlessly orchestrates control over multiple entertainment devices, including Blu-ray players, cable boxes, and game consoles, while supporting IP control for devices like Apple TV, Roku, and network-connected audio/video systems.

In addition to device control, CORE 1 provides high-quality audio and supports a second independent audio zone, with digital and HDMI audio outputs managed through the built-in Ryff high-resolution audio server. With compatibility for leading music services, including Spotify, TIDAL, Pandora, and more, CORE 1 allows easy streaming, while integration with AirPlay offers enhanced flexibility.

Key Features:

  • Powerful Processor: Advanced multi-core processors for optimized performance with Control4 OS 3 and future updates.

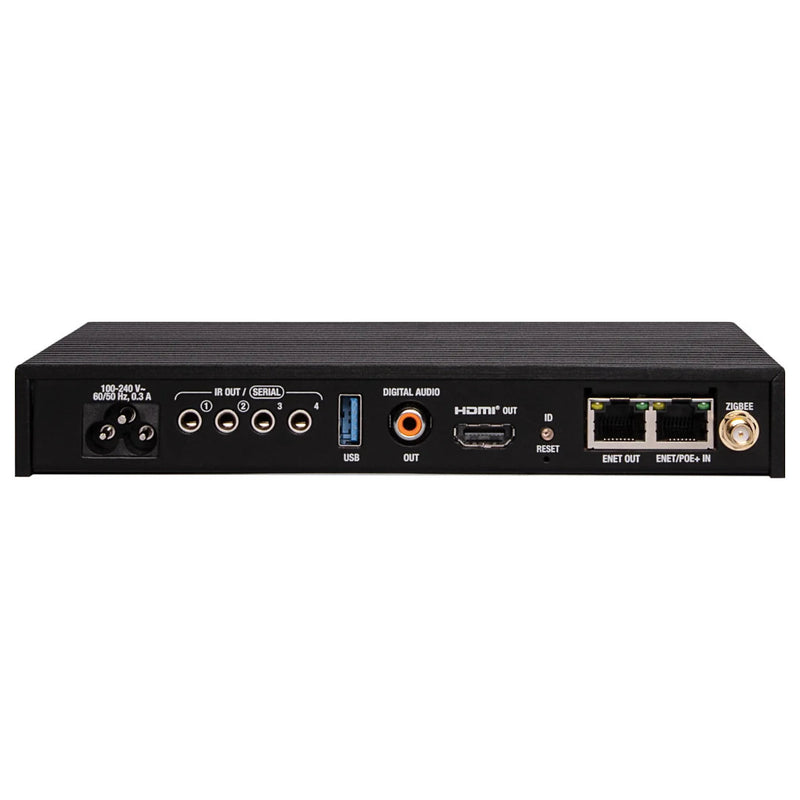

  • Versatile Control Outputs: Includes four IR outputs, two serial outputs, a digital audio output, and HDMI for interactive 4K display and dual audio zones.
  • Ryff Audio Server: Integrated high-resolution audio server supports services like Qobuz, TIDAL, Pandora, Spotify, SiriusXM, TuneIn, and others.
  • Elegant 4K Interface: Intuitive, on-screen interface for entertainment, scene selection, surveillance, and comfort controls.
  • Silent Operation: Fanless design with heat-sink chassis and built-in power supply for quiet and reliable functionality.
  • PoE+ Enabled: Power and network connectivity over a single CAT5/CAT6 cable for easy setup and management.
  • Built-in Ethernet Switch: Two-port Ethernet switch simplifies network installation, allowing additional device connections.
  • USB Compatibility: USB port allows connection of external hard drives or Wi-Fi dongles for expanded media and connectivity options.
  • Mobile App Support: Control4 app registration enables access from iOS and Android devices, including Apple Watch, on the local network.
  • 4Sight Subscription: Optional 4Sight subscription adds remote access, Intercom Anywhere, notifications, voice assistant integration, and cloud backups.
  • Communication Server: Built-in for audio/video intercom communication with Control4 touchscreens, Chime video doorbells, and door stations.
  • Remote Management: OvrC Pro built-in for advanced network management, remote device configuration, and troubleshooting, all accessible via the OvrC app.

Specifications:

  • Video Output: HDMI 2.0a supporting 4K at 60Hz.
  • Audio Outputs: HDMI and Digital Coax with support for AAC, AIFF, ALAC, FLAC, MP3, WAV, and other high-quality formats, up to 192 kHz / 24-bit resolution.
  • Networking: Ethernet 10/100/1000BaseT, PoE+ input, and one Ethernet output port.
  • Wi-Fi and Zigbee: Supports Zigbee Pro 802.15.4 and optional Wi-Fi via USB dongle.
  • Control Ports: Four IR outputs, two serial outputs (shared with IR 1 and 2), and an IR receiver on the front panel (20-60 kHz).
  • Power Requirements: 100-240VAC, 60/50Hz; Max power: 18W, idle power: 12W.
  • Operating Temperature: 32°F to 104°F (0°C to 40°C); Storage Temperature: 4°F to 158°F (-20°C to 70°C).
  • Dimensions: 1.16” H x 7.67” W x 5.2” D.
  • Weight: 1.5 lbs (0.68 kg).

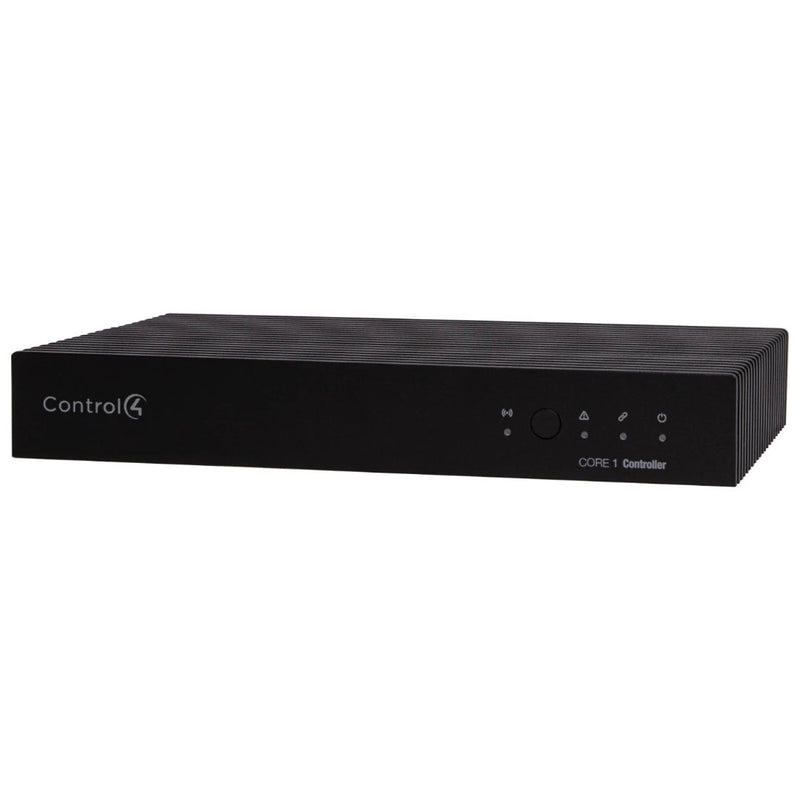

  • Front Panel LEDs: Status indicators for music streaming, warnings, link, and power.
  • Processor: i.MX8Mi Quad Core CPU with 2GB RAM and 16GB eMMC flash storage.
  • Accessories: Optional wall-mount bracket (C4-CORE1-WM), rack-mount kit (C4-CORE1-RMK), serial cable (C4-CBL3.5-DB9), and SR260-B remote for on-screen control.

The Control4 CORE 1 Controller is a robust, flexible solution for smart home and business automation, designed to simplify device integration and control with an easy-to-use interface. Its advanced features, including high-resolution audio, multi-device control, and secure remote management via OvrC Pro, make it a powerful tool for integrators and users looking for efficient automation and entertainment control in any environment.
