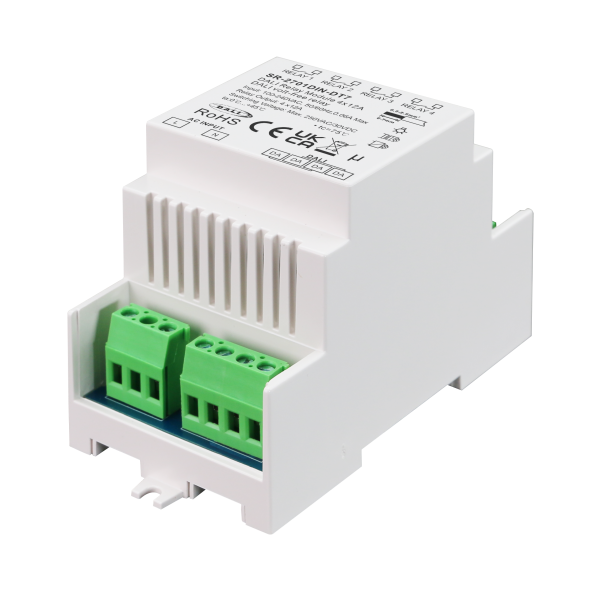

Sunricher SR-2701DIN-DT7 DIN-Rail 4 ch DALI-2 Relay, 4 × 12 A

Sunricher SR-2701DIN-DT7 DIN-Rail 4 ch DALI-2 Relay, 4 × 12 A

by Sunricher
SKU SR-2701DIN-DT7
€84.00 - €84.00 excl. VAT
€103.32 - €103.32 incl. IE VAT
excl. VAT
€0.00 incl. IE VAT
€84.00 excl. VAT
€103.32 incl. IE VAT
€84.00 - €84.00 excl. VAT
€103.32 - €103.32 incl. IE VAT
€84.00 excl. VAT
€103.32 incl. IE VAT
Availability: 1 in stock

The SR-2701DIN-DT7 is a high-performance DALI-2 relay switch featuring four independent relay channels with zero crossing detection. Designed for seamless integration into professional DALI lighting control systems, it supports DIN rail mounting and allows easy control of non-DALI loads through standard contactors. Each channel can be individually controlled via DALI, making it ideal for complex automation setups.

This DIN rail-mounted module is compatible with universal DALI master controllers and supports automatic DALI address assignment for all four channels. The SR-2701DIN-DT7 ensures smooth and reliable switching performance and enhances energy efficiency and control precision in residential, commercial, or industrial applications.

With its compact and robust design, the relay module can be easily integrated into electrical panels using a standard 35mm DIN rail. It is suitable for switching various loads that do not support DALI natively, allowing them to be part of a DALI-controlled environment without additional interfaces.

The device is powered by a 100–240VAC input and offers a waterproof rating of IP20, ensuring durability in standard indoor installations. This makes it a versatile and cost-effective choice for lighting and automation professionals seeking reliable and scalable DALI solutions.

Whether you’re retrofitting existing installations or deploying a new system, the SR-2701DIN-DT7 offers unmatched flexibility and compliance with the latest DALI-2 standards. It also comes with a five-year manufacturer warranty, reflecting its build quality and reliability.

The module's zero crossing detection feature minimizes inrush current and extends the lifespan of connected loads, further contributing to system longevity and safety.

It is particularly useful in settings where different types of electrical loads need to be integrated into a centralized control system, such as in smart buildings, energy management systems, and lighting automation platforms.

  • 4-channel DALI relay module with zero crossing detection
  • Each channel controlled independently via DALI commands
  • DIN rail mountable (standard 35mm)
  • Supports 100–240VAC input
  • Automatic DALI address assignment by master controller
  • Controls 4 standard contactors for non-DALI load integration
  • Compatible with most DALI and DALI-2 master systems
  • IP20 rated for indoor environments
  • 5-year warranty included
