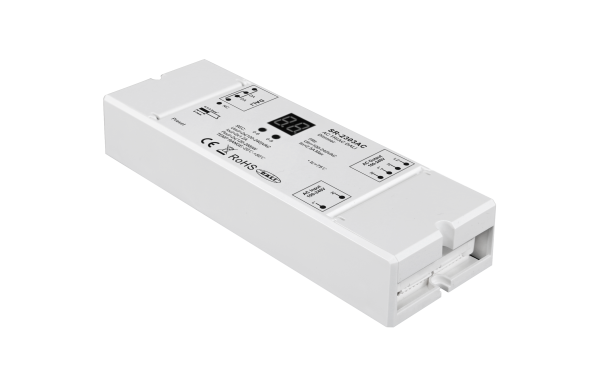

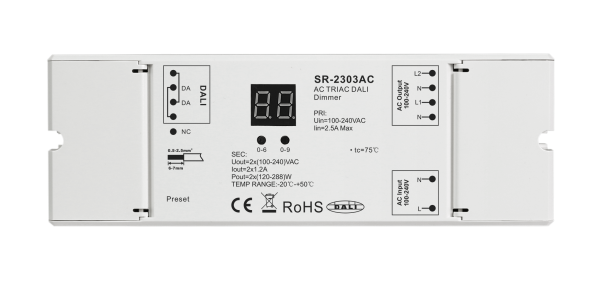

Sunricher SR-2303AC 2 ch AC TRIAC DALI Dimmer, 230 VAC

This dimmer supports trailing edge dimming (reverse-phase control) and features two output channels, each capable of handling up to 1.2A. It allows users to assign one or two DALI addresses, providing flexible control over both channels either synchronously or independently, depending on application needs.

The SR-2303AC is equipped with a digital numeric display that simplifies the process of setting and displaying DALI addresses. Additionally, it supports a minimum brightness setting function, enabling users to define and adjust the lowest brightness threshold, enhancing dimming precision and lighting ambiance. This setting can also be cleared easily when no longer needed.

Engineered for seamless integration, this dimmer is compatible with universal DALI master controllers as well as a broad range of triac dimmable LED drivers, making it an adaptable component for new installations or retrofits.

Its compact and practical design makes it suitable for both residential and commercial lighting systems, particularly where dual-channel dimming and full isolation are essential. The combination of high safety standards, ease of configuration, and broad compatibility ensures it meets diverse project demands.

Whether you're upgrading your lighting control systems or implementing new smart lighting environments, the SR-2303AC delivers dependable performance and intuitive control through the DALI interface.

• DALI certified and TUV CE certified for safety and compliance
• Fully isolated design with 100-240VAC input/output
• Two channels with max 1.2A output per channel
• Supports 1 or 2 DALI addresses for flexible channel control
• Trailing edge (reverse-phase) dimming technology
• Integrated digital display for DALI address configuration
• Minimum brightness setting with deletion capability
• Compatible with universal DALI master controllers and triac dimmable LED drivers
• Controls single-color dimmable LED, incandescent, and halogen lamps
