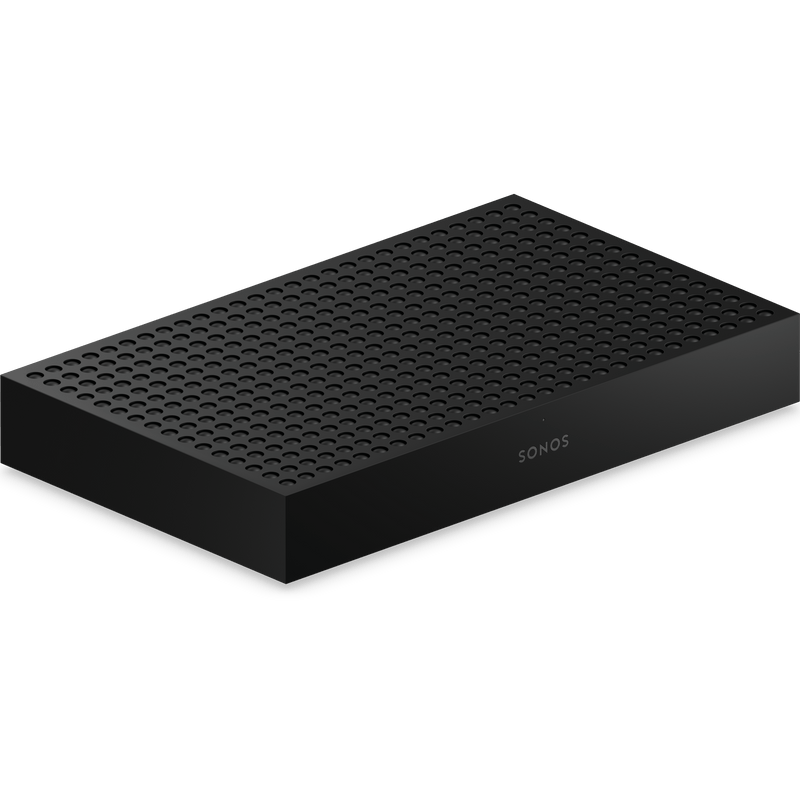

Sonos Amp Multi eight channel four zone rack amplifier in black, front angle

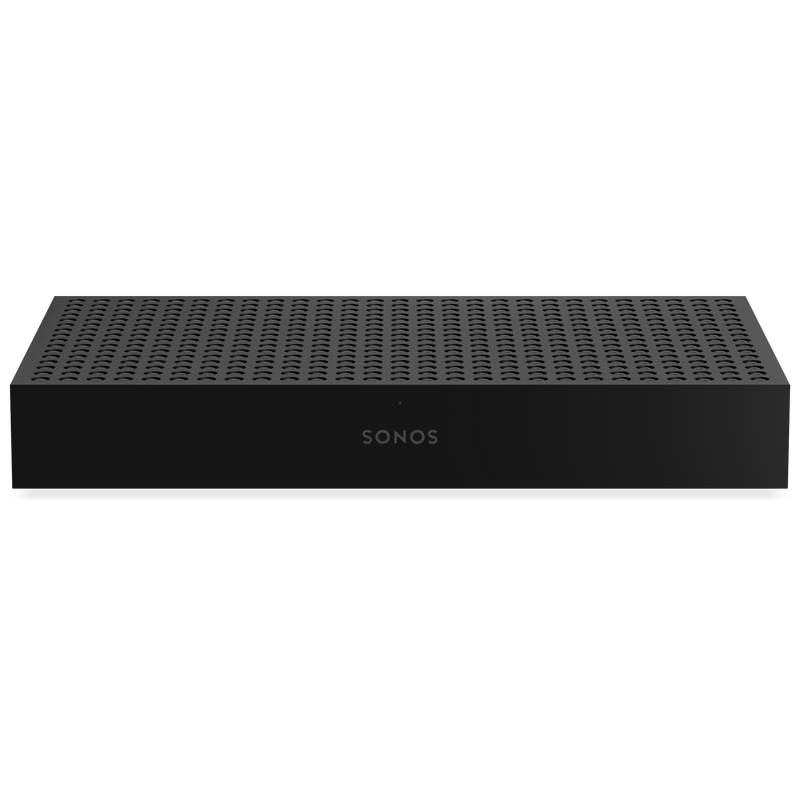

Sonos Amp Multi front view showing the black perforated chassis

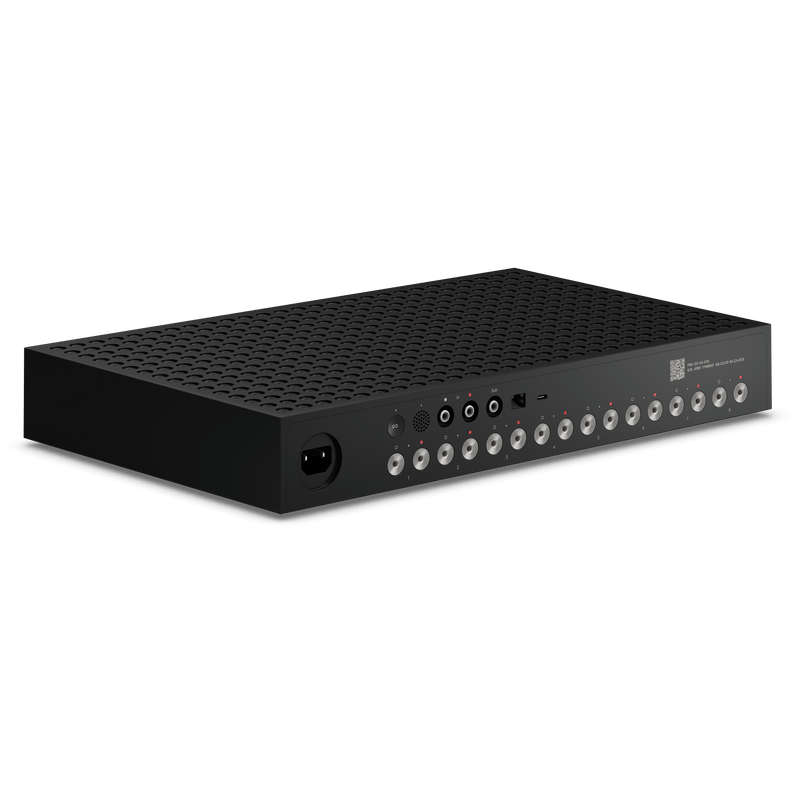

Sonos Amp Multi rear panel at an angle showing speaker terminals and network port

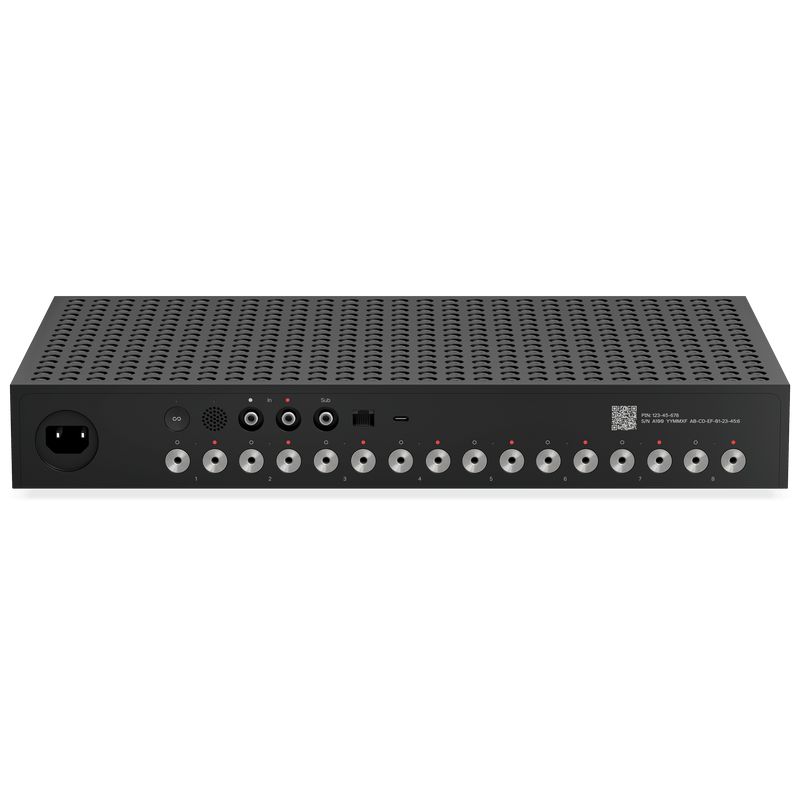

Sonos Amp Multi rear panel straight on with eight speaker outputs
Close up of the Sonos Amp Multi rear panel with RCA inputs and subwoofer output connected

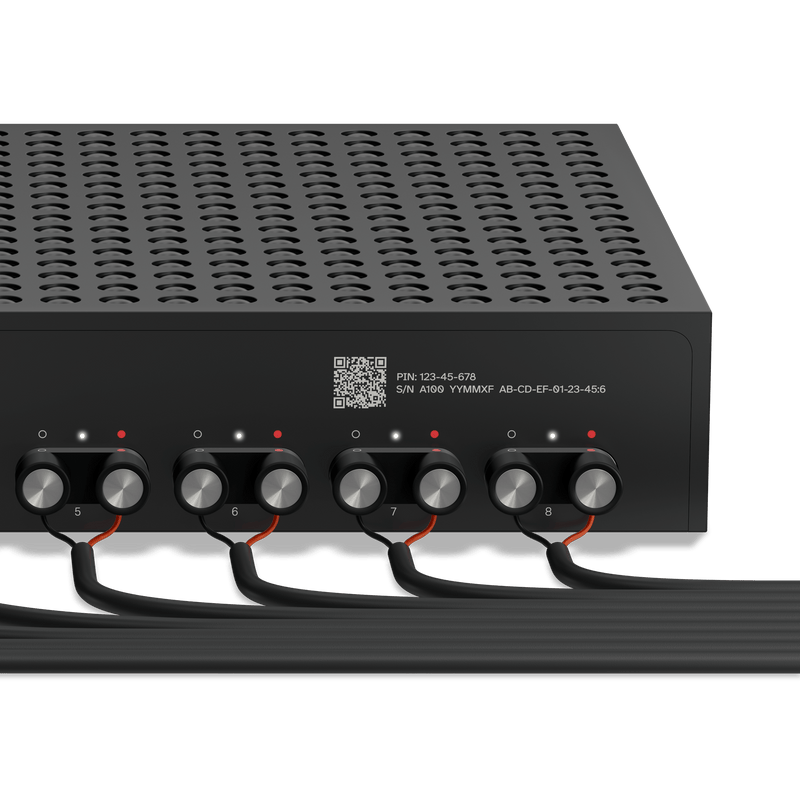

Sonos Amp Multi rear panel with speaker cables connected to all eight outputs
Sonos Amp Multi viewed from above showing the perforated top surface

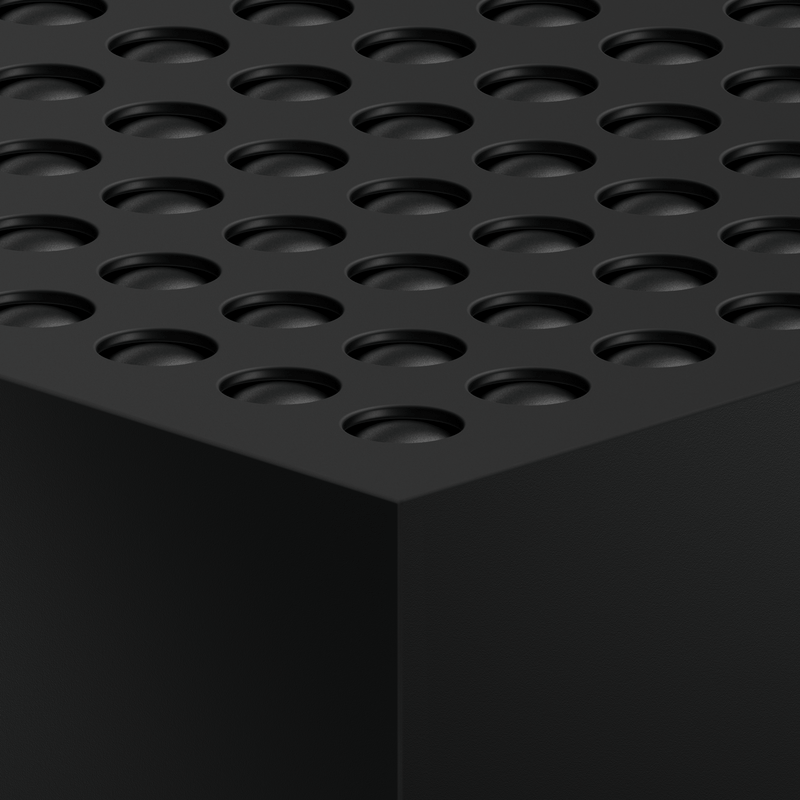

Close up of the perforated ventilation top on the Sonos Amp Multi chassis

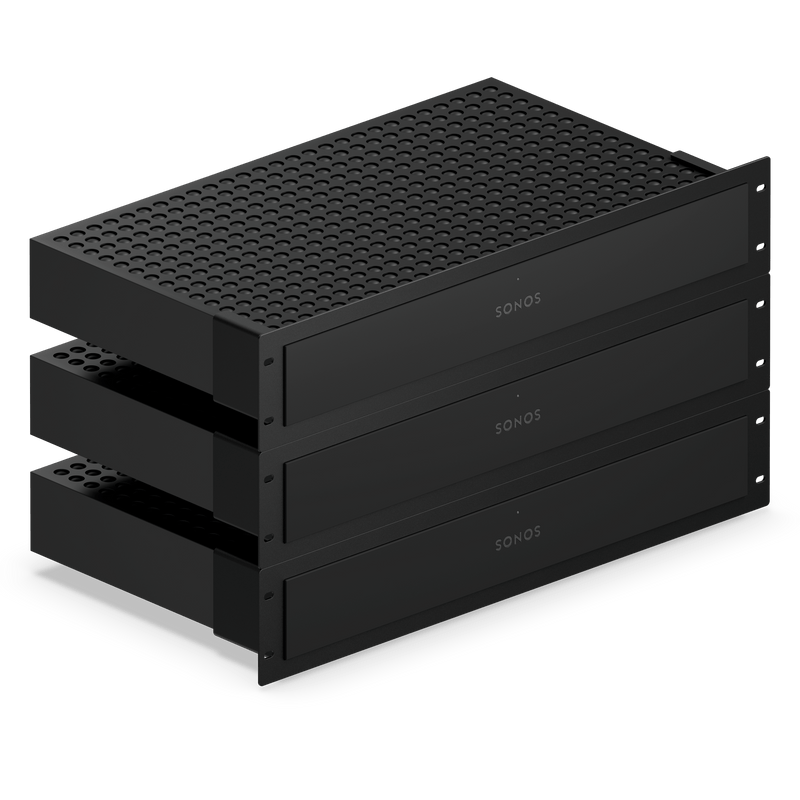

Three Sonos Amp Multi units stacked together

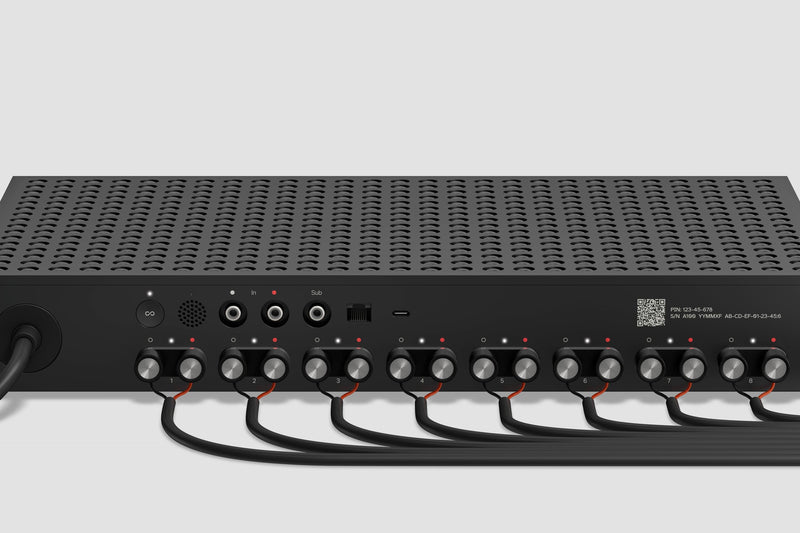

Sonos Amp Multi fully wired with speaker cables across all eight outputs

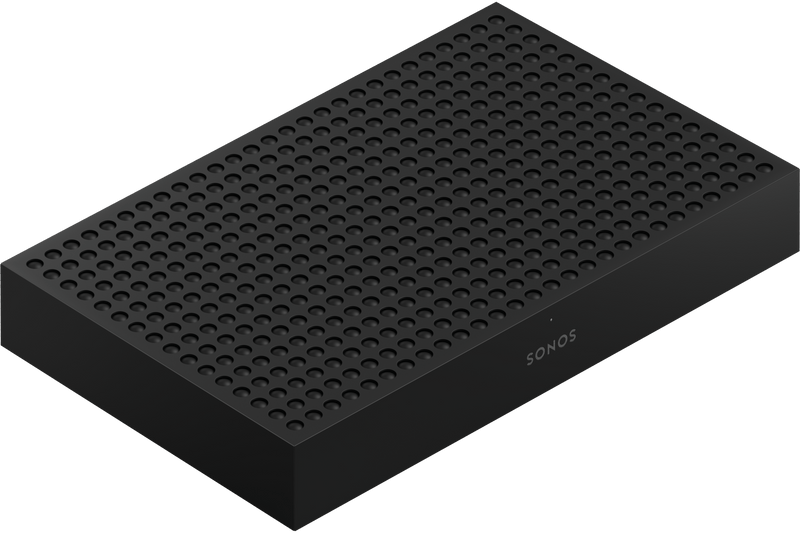

Sonos Amp Multi four zone amplifier at an angle, black fanless chassis

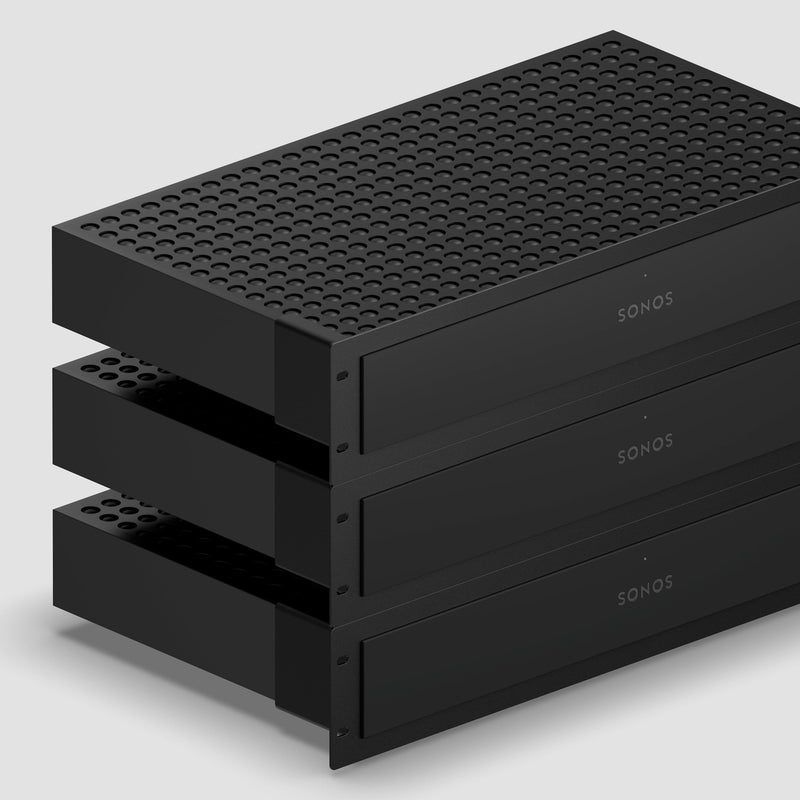

Three Sonos Amp Multi amplifiers stacked, showing 2U rack density

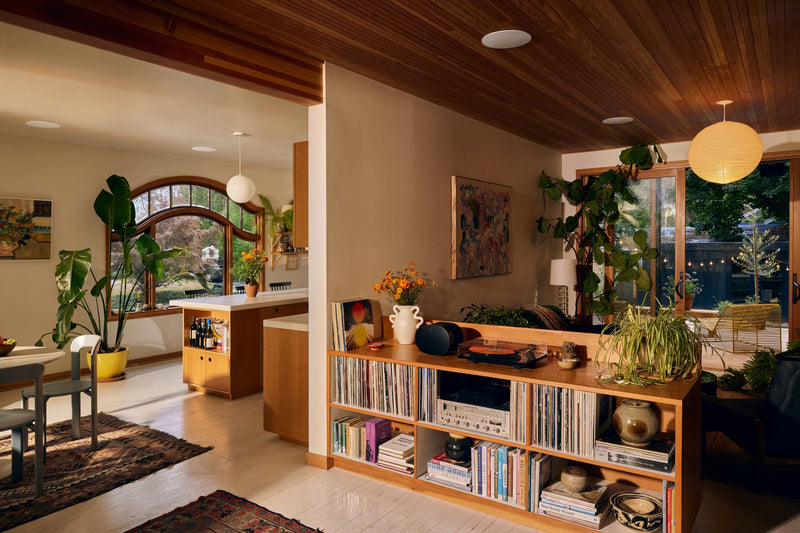

Open plan kitchen and living space of the kind a four zone Sonos system covers
Sonos Amp Multi eight channel four zone rack amplifier in black, front angle
Sonos Amp Multi front view showing the black perforated chassis
Sonos Amp Multi rear panel at an angle showing speaker terminals and network port
Sonos Amp Multi rear panel straight on with eight speaker outputs
Close up of the Sonos Amp Multi rear panel with RCA inputs and subwoofer output connected
Sonos Amp Multi rear panel with speaker cables connected to all eight outputs
Sonos Amp Multi viewed from above showing the perforated top surface
Close up of the perforated ventilation top on the Sonos Amp Multi chassis
Three Sonos Amp Multi units stacked together
Sonos Amp Multi fully wired with speaker cables across all eight outputs
Sonos Amp Multi four zone amplifier at an angle, black fanless chassis
Three Sonos Amp Multi amplifiers stacked, showing 2U rack density
Open plan kitchen and living space of the kind a four zone Sonos system covers

Sonos Amp Multi

by Sonos
SKU AMPMULTIG1UK1BLK
€2,942.28 - €2,942.28 excl. VAT
€3,619.00 - €3,619.00 incl. IE VAT
excl. VAT
€0.00 incl. IE VAT
€2,942.28 excl. VAT
€3,619.00 incl. IE VAT
€2,942.28 - €2,942.28 excl. VAT
€3,619.00 - €3,619.00 incl. IE VAT
€2,942.28 excl. VAT
€3,619.00 incl. IE VAT

Four zones of Sonos audio from a single rack unit. Amp Multi provides eight amplified outputs, each independently configurable for stereo or mono, so a full floor of ceiling speakers runs from one box, one power feed and one network connection.

Eight channels, four zones

Every output is set independently as stereo or mono, so a bathroom running one speaker and a living room running a stereo pair can share the same amplifier without wasting a channel.

125 watts per channel, all channels driven

Full power on every output at the same time. GaN switching and post filter feedback keep distortion low when the whole house is playing, not only when one room is.

ProTune room correction

Ten band parametric EQ at plus or minus 15 dB, adjustable delay up to 50 ms, a high pass filter and per channel gain trim. Rooms are levelled and corrected at commissioning rather than left for the client to fix in the app.

Built for the rack

2U high, fanless and thermally optimised, with a rack mount kit made for it. One network drop and one power feed instead of four, which is the difference between a tidy rack and a crowded one.

Designed for architectural speakers

A minimum impedance of 2.67 ohms with Sonos Architectural by Sonance, so more speakers can share a channel where the design calls for it.

Part of the same system

Groups with every other Sonos player in the house and runs from the app the client already knows. Nothing new to learn when the zones are added.

Audio

  • Class D amplification with GaN and post filter feedback. 125 W per channel at 8 ohms, all channels driven
  • Eight amplified outputs, each configurable as stereo or mono. Four zones maximum
  • Minimum impedance 2.67 ohms with Sonos Architectural speakers
  • Frequency response 15 Hz to 20 kHz, plus or minus 0.5 dB
  • Signal to noise ratio 114 dB, referenced to 125 W into 8 ohms

Connections

  • Two RCA analogue inputs
  • Eight speaker outputs, banana plugs included
  • One RCA subwoofer output
  • USB-C audio input, adapter required
  • Ethernet RJ45 and WiFi 6

Tuning

  • ProTune with 10 band parametric EQ, plus or minus 15 dB gain
  • Adjustable delay, 0 to 50 ms
  • High pass filter and per channel gain trim

Physical

  • Dimensions H x W x D, 2.52 x 17.2 x 10.44 in. (64 x 437 x 265 mm)
  • Weight 11.16 lbs. (5.06 kg)
  • Fanless, thermally optimised chassis. 2U rack mount kit sold separately

Power

  • 5.4 W at idle, 180 W at one eighth output power

Specified, installed and commissioned by Formwave. If you are planning multi room audio for a new build or a retrofit, our design and specification service maps the zones, speakers and rack before anything is ordered.
