D Stands for Discreet In-Wall and In-Ceiling Speakers
The "D" in Lyngdorf Discreet Series represents discreet design. Each model is specifically crafted for seamless in-wall or in-ceiling installation with a secure wall-fixing system and mounting legs. These speakers come with their own integrated enclosures, eliminating the need for aftermarket backboxes or closed wall cavities. This design ensures consistently high sound quality, independent of wall structure or available space behind the wall.
High Power, Sensitivity, and Sound Pressure Level

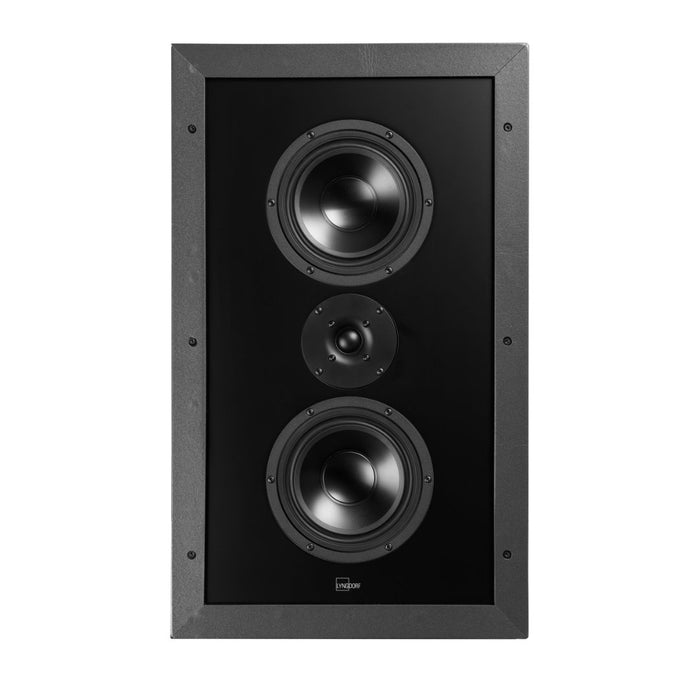

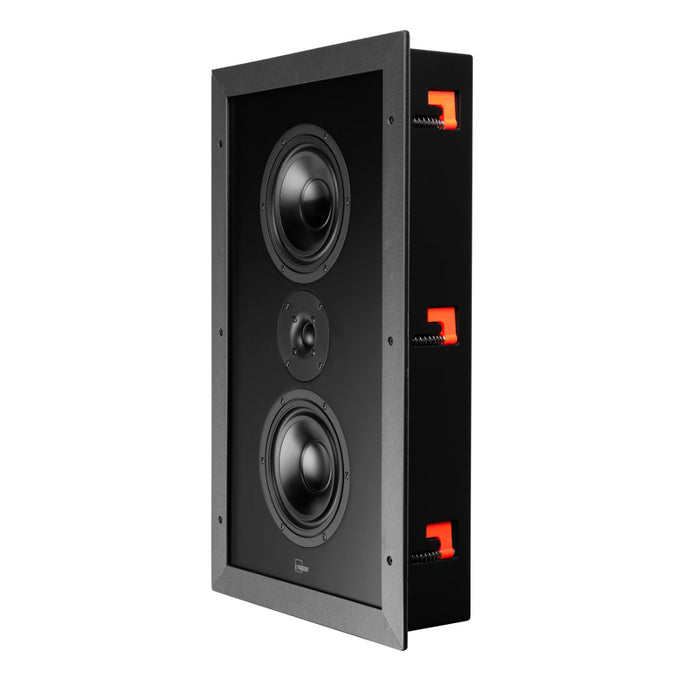

The Lyngdorf D-60 is a high-performance in-wall speaker, perfect for front channels with additional woofers and as surround speakers. Offering the highest power handling, sensitivity, and sound pressure level in the Discreet Series, the D-60 covers frequencies from 22 kHz down to 80 Hz (-3dB). Designed to pair with woofers like the Lyngdorf BW-20 or DW-1 for enhanced bass and LFE, the D-60 is an excellent choice for high-end home theaters, larger rooms, or as a complement to the Lyngdorf LS-1000 line source speakers for a fully immersive audio experience.
Advanced Soft-Dome Tweeter and Enhanced Midrange Drivers
The D-60 features a powerful soft-dome tweeter with a stronger magnet than the D-500, delivering clear, high-definition audio. Two 18 cm / 7-inch aluminum midrange drivers, positioned above and below the tweeter, create optimal sound projection. The drivers, with vented magnets and die-cast baskets, and an inverted surround for a flat speaker front, offer premium sound in a compact, space-efficient design.

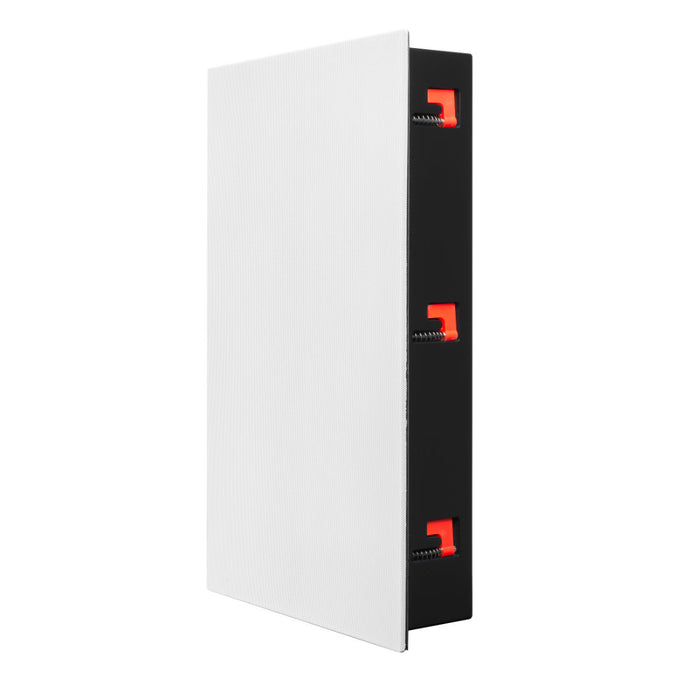

Pre-Mounted Enclosure for Consistent Sound Performance
Each D-60 speaker comes with a high-quality MDF pre-mounted enclosure, eliminating the need for additional backboxes or closed cavities. This sturdy enclosure reduces resonance, providing consistent and defined sound quality, no matter the wall type or space behind the wall.
Custom Lyngdorf Audio Speaker Design
The D-60 midrange drivers and tweeters are designed with advanced Lyngdorf technology, featuring soft-dome tweeters, lightweight aluminum cones, vented magnets, and die-cast baskets. These components are tailored to each model, offering the high-quality, immersive sound Lyngdorf Audio is known for.
Specifications:
-
Model: Lyngdorf D-60
-
Description: Custom installation 2-way speaker
-
Tweeter: 28 mm / 1″ soft dome
-
Midrange/woofer: 2 x 180 mm, 38 mm voice coil, aluminum cone, vented magnet, die-cast vented basket
-
Enclosure: Closed MDF cabinet
-
Frequency range: 80 – 22,000 Hz (-3 dB)
-
Nominal Impedance: 4 Ohm
-
Sensitivity: 92 dB (2.83V/1m)
-
Power handling: 200 W (IEC)
-
Maximum SPL: 112 dB
-
Crossover point: 2.5 kHz
-
Connections: Binding posts
-
Mounting: In-wall
-
Dimensions with grill (W x H x D): 388 x 646 x 104 mm / 25.4 x 15.3 x 4.1 inches
-
Cut-out dimensions (W x H x D): 360 x 618 x 100 mm / 24.3 x 14.2 x 3.9 inches
-
Weight: 11.4 kg / 25.1 lb
-
Finish: Matte black, white grill
