The Lyngdorf D Series brings the renowned Lyngdorf Audio sound quality to the custom installation speaker market. Building on the success of Lyngdorf speakers designed for modern living spaces—including the MH and FR on-wall speakers, BW boundary woofers, and the CS-1 cabinet speaker—the D Series expands Lyngdorf’s offerings with in-wall and in-ceiling speakers, perfect for stereo and multichannel setups.
D Stands for Discreet Design

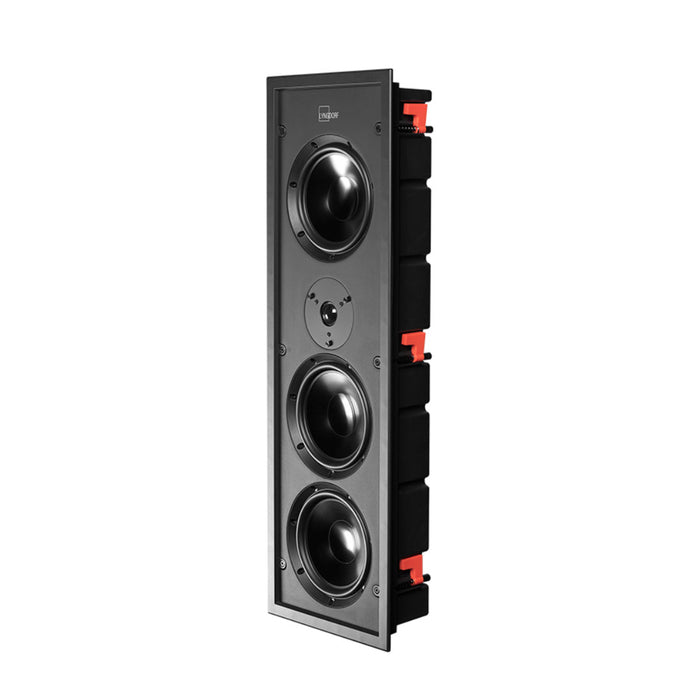

Every model in the D Series is crafted for discreet, in-wall or in-ceiling installation, allowing for a seamless blend with your décor. The speakers feature a wall-mounting mechanism with secure mounting legs and come with their own built-in enclosure. This simplifies system planning and installation, eliminating the need for aftermarket backboxes or closed-wall cavities. This integrated enclosure ensures consistent sound quality, independent of wall construction and available wall space.
Full-Range Speaker Design for Versatile Audio Performance

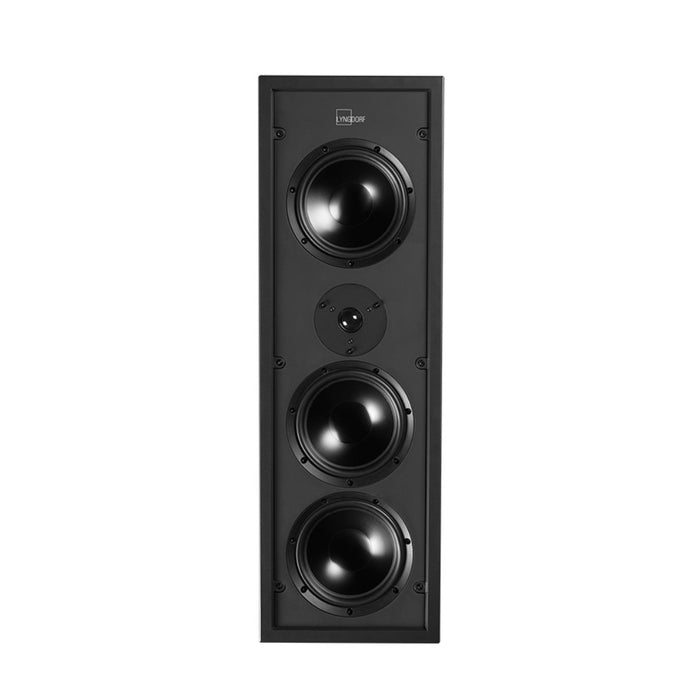

The Lyngdorf D-500 is engineered as a full-range speaker, equipped with two passive woofers to complement the midrange driver and tweeter. This design offers deep bass response down to below 50Hz, making the D-500 a powerful option even without a subwoofer. It is ideal for smaller to medium-sized rooms and works perfectly as a full-range, in-wall stereo setup positioned left and right of a TV.
Integrated Pre-Mounted Loudspeaker Enclosure
All D-500, D-60, and D-5 models are equipped with pre-mounted loudspeaker enclosures, eliminating the need for aftermarket backboxes or closed wall cavities. This ensures consistently high sound performance, independent of wall construction or the space available behind the wall.
Signature Lyngdorf Audio Speaker Design and Drive Units
The Lyngdorf D Series speakers feature woofers and tweeters inspired by the well-regarded drive units in other Lyngdorf loudspeakers, adapted specifically for these new models. They include soft-dome tweeters, lightweight aluminum cones, vented magnets, and sturdy die-cast baskets, delivering the high-quality, balanced sound that Lyngdorf Audio is known for.
Specifications:
-
Description: 2-way speaker with 2 passive woofers
-
Tweeter: 28 mm / 1.1″ soft dome
-
Midrange driver: 175 mm, 38 mm voice coil, aluminum cone, vented magnet
-
Passive woofer: 2 x 175 mm, aluminum cones
-
Enclosure: Closed compound cabinet
-
Frequency range: 50 – 22,000 Hz (-3 dB)
-
Nominal Impedance: 4 Ohm
-
Sensitivity: 88 dB (2.83V/1m)
-
Power handling: 100 W (IEC)
-
Maximum SPL: 105 dB
-
Crossover point: 2.5 kHz
-
Connections: Binding posts
-
Mounting: In-wall
-
Dimensions with grill (W x H x D): 254 x 779 x 106 mm / 10 x 30.7 x 4.2 inches
-
Cut-out dimensions (W x H x D): 226 x 751 x 100 mm / 8.9 x 29.6 x 3.9 inches
-
Weight: 7.4 kg / 16 lb
-
Finish: Matte black, white grill
