Discreet Design for Seamless Integration
The "D" in Lyngdorf Discreet Series stands for discreet, with each model crafted for easy, unobtrusive in-wall or in-ceiling installation. Featuring a secure wall-mounting mechanism with durable mounting legs, each speaker comes equipped with a pre-installed enclosure. This design simplifies installation, eliminates the need for aftermarket backboxes or closed wall cavities, and ensures consistent sound quality regardless of wall construction or space constraints.
Adjustable Tweeter for Immersive Sound Experience

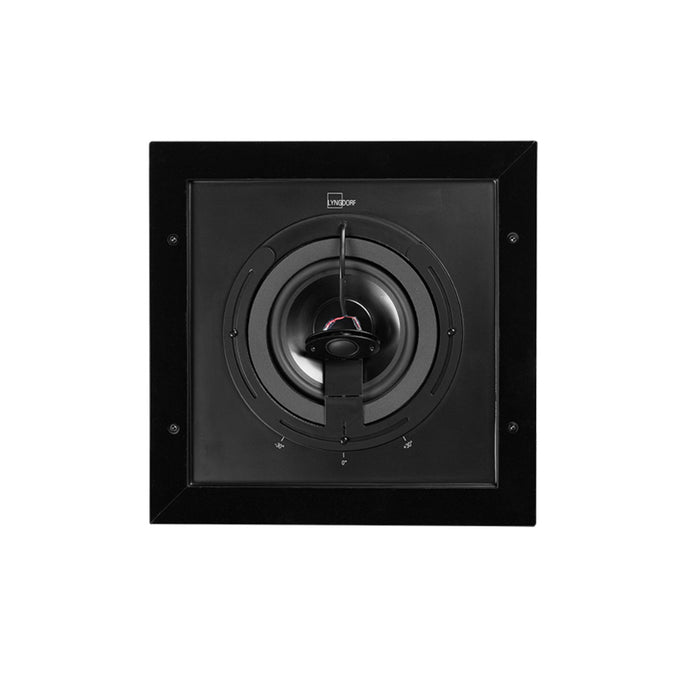

The D-5 IC model offers an angled, adjustable tweeter paired with a square cabinet design to direct sound toward the listening area. Ideal for immersive audio setups, the D-5 IC can be mounted overhead at the front, sides, or rear of the listening area, perfect for height speakers. The tweeter's direction can be further adjusted post-installation, delivering tailored sound positioning.
Integrated Pre-Mounted Enclosure for Consistent Sound Performance
Both the D-5 and D-5 IC models come with pre-mounted loudspeaker enclosures, so there’s no need for additional backboxes or closed wall cavities. This built-in enclosure maintains a consistent and high-quality sound performance, independent of wall construction and available wall space.
Expert Lyngdorf Audio Design and Advanced Drive Units
The D-500 and D-5 speakers feature drive units designed by Lyngdorf Audio, including soft-dome tweeters, lightweight aluminum cones, and powerful vented magnets. These expertly crafted components ensure a balanced, high-fidelity audio experience synonymous with Lyngdorf Audio’s reputation for quality.
Specifications:
-

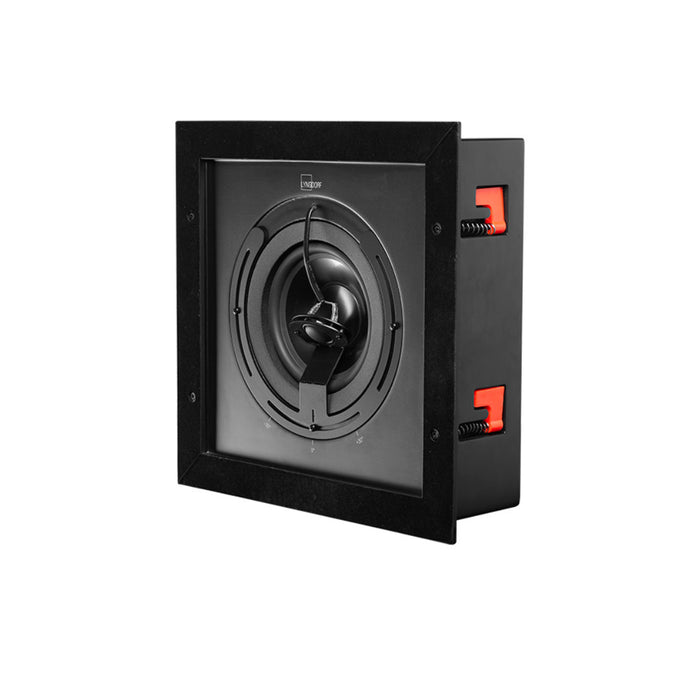

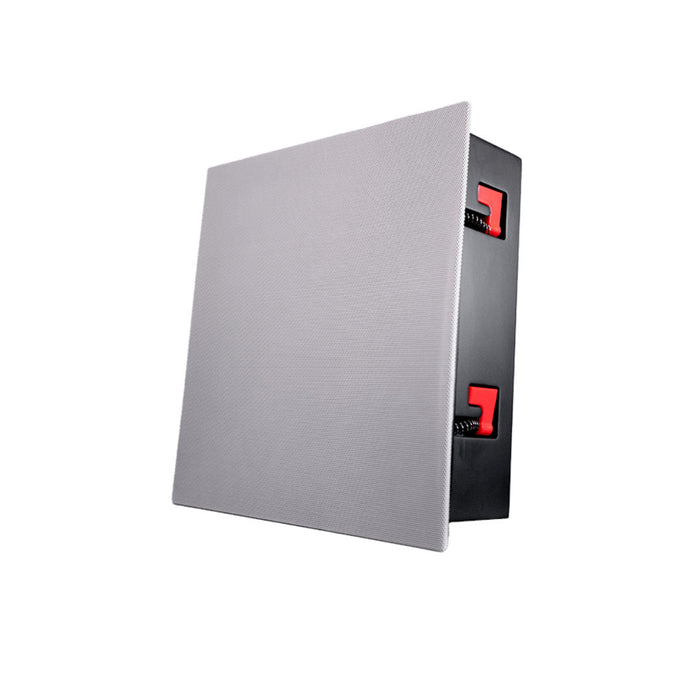

Model: Lyngdorf D-5 IC
-
Description: 2-way speaker
-
Tweeter: 25 mm / 1″ soft dome
-
Midrange driver: 180 mm, 35 mm voice coil, aluminum cone, vented magnet
-
Enclosure: Closed MDF cabinet
-
Frequency range: 80 – 20,000 Hz (-3 dB)
-
Nominal Impedance: 4 Ohm
-
Sensitivity: 88 dB (2.83V/1m)
-
Power handling: 100 W (IEC)
-
Maximum SPL: 105 dB
-
Crossover point: 2.2 kHz
-
Connections: Binding posts
-
Mounting: In-ceiling
-
Dimensions with grill (W x H x D): 362 x 362 x 114 mm / 14.25 x 14.25 x 4.5 inches
-
Cut-out dimensions (W x H x D): 334 x 334 x 109 mm / 13.2 x 13.2 x 4.3 inches
-
Weight: 6.9 kg / 15.2 lb
-
Finish: Matte black, white grill
