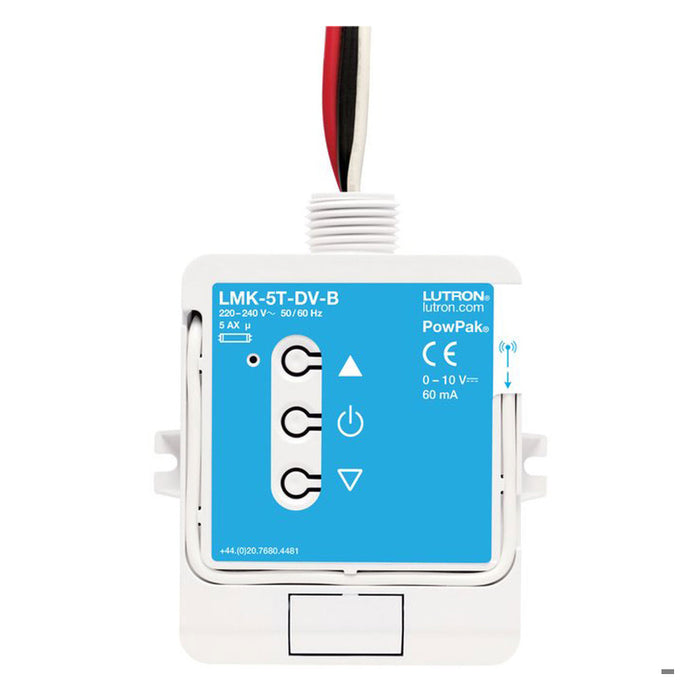

Lutron RF Dimming Module with 0-10V Control

Lutron RF Dimming Module with 0-10V Control

by Lutron
SKU LMK-5T-DV-B
€275.00 - €275.00 excl. VAT
€338.25 - €338.25 incl. IE VAT
€275.00 excl. VAT
€338.25 incl. IE VAT
€275.00 - €275.00 excl. VAT
€338.25 - €338.25 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Lutron RF Dimming Module with 0-10V Control is a versatile RF device designed for seamless integration with RA2 Select, RadioRA 2, and HomeWorks systems. This module operates 0-10V controlled fluorescent ballasts or LED drivers and switches line voltage up to 5 A. Utilizing Lutron's Clear Connect RF technology, it ensures reliable wireless communication and easy installation, making it ideal for various lighting control applications.

Features:

  • 0-10V control link sources or sinks up to 60 mA to third-party fixtures
  • Switches line voltage up to 5 A
  • Configurable high- and low-end trim
  • Compatible with RA2 Select, RadioRA 2, and HomeWorks systems
  • Utilizes Lutron Clear Connect RF technology for reliable wireless communication
  • Mounts to an electrical junction box through a 1/2 in (21 mm) knockout opening
  • Complies with NEC® 2011 300.22(C)(3) for use in plenum spaces (LMJ model only)

Specifications:

  • Power: 220–240 V~ 50/60 Hz, 5 A (LMK, LMM, LMN, LMQ models)
  • Typical Power Consumption: < 1.0 W
  • Operating Environment: 32°F to 104°F (0°C to 40°C), 0% to 90% humidity, non-condensing, indoor use only

Communication and Range:

  • Operates using Clear Connect RF technology
  • RF range is 30 ft (9 m) from repeaters, extendable with up to four Lutron wireless repeaters
  • Contact us for applications using foil-backed or metallic ceiling tiles

Load Types:

  • 0-10V Control Link Maximum Load: 60 mA, source or sink automatically configures
  • Control link compatible with ANSI E1.3 2001 (R2006), IEC 60929 Annex E
  • Switched Maximum Load: 5 A lighting, no minimum load requirements
  • Compatible load types: MLV, ELV, Incandescent, Magnetic fluorescent, Electronic fluorescent, LEDs

Mounting and Installation:

  • Mounts to an electrical junction box through a 1/2 in (21 mm) knockout opening
  • Refer to local and national electric codes for proper installation methods

Surge Protection:

  • Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 standards.

Applications:

The RF Dimming Module with 0-10V Control is ideal for controlling fluorescent ballasts or LED drivers in residential and commercial settings. Its robust design and reliable performance make it suitable for use in high-demand environments where wireless communication and easy integration are essential.
