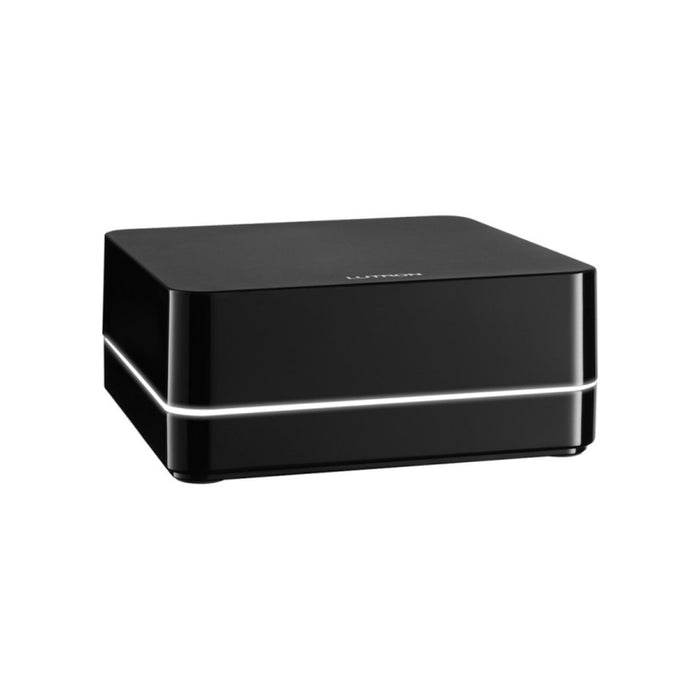

Lutron RA2 Select Main Repeater

It supports up to 100 wireless devices, including dimmers, switches, occupancy/vacancy sensors, Pico wireless controls, and wireless shades. Ideal for both residential and commercial settings, it ensures seamless integration with other smart home systems and allows for convenient control from anywhere in the world.

Features:

• Supports up to 100 wireless devices, including dimmers, switches, sensors, and shades.
• Programmed via the Lutron App (iOS® and Android™).
• Scene control through the Lutron App and Pico scene keypads.
• Time clock scheduling for daily events using the Lutron App.
• Connects to Wi-Fi router via Ethernet connection.
• Local operation continues without internet connection or if the main repeater is powered down.
• Global system access using the Lutron App.
• Control via widgets (iOS® and Android™).
• Supports Geofencing from the Lutron App.
• Control from Apple Watch®.
• Integrates with smart home brands like Amazon® Alexa®, Google® Assistant, Nest®, and Sonos®.
• Expandable range with up to four wireless repeaters (Lx-REPPRO-BL).
• Automatic programming for Pico wireless controls for typical applications, with customization options via the Lutron App.
• Integration with select professional A/V and security systems.

Compatible Devices:

• RA2 Select In-line dimmer
• RA2 Select In-line switch
• Lutron wireless occupancy and vacancy sensors
• Pico wireless controls
• Lutron wireless repeaters (up to 4 Lx-REPPRO-BL)
• Sivoia QS Triathalon and Sivoia QS Wireless roller shades, drapery track, Kirbé, and Roman shade systems

Specifications:

• Power: 5 V- 300 mA
• Typical Power Consumption: 1.3 W (Test conditions: LED on, Ethernet cable plugged in, powered by the 5 V- adapter)
• Regulatory Approvals: CE, TRA, CITC (RRK- model only), and WPC Certified (RRN- model only)
• Environment: Ambient operating temperature 0°C to 40°C, 0% to 90% humidity, non-condensing, indoor use only
• Communications: All devices must be located within 9 m of a repeater. All repeaters must be located within 18 m of another repeater. Internet required for setup, system date/time maintenance, and firmware updates
• ESD Protection: Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2
• Surge Protection: Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice for Surge Voltages in Low-Voltage AC Power Circuits
• Power Failure Memory: Recovers previous state after power interruption
• Connections: Ethernet (0.92 m cable included), USB (power only)

Dimensions:

• 69.9 mm x 69.9 mm x 30.2 mm
