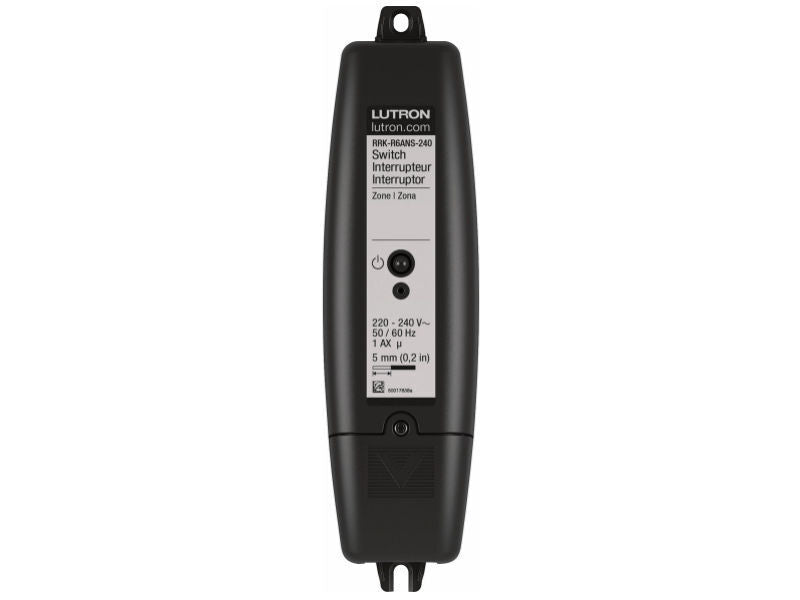

Lutron HomeWorks QS In-line Switch

Lutron HomeWorks QS In-line Switch

by Lutron
SKU HQRK-R6ANS-240
€205.00 - €205.00 excl. VAT
€252.15 - €252.15 incl. IE VAT
€205.00 excl. VAT
€252.15 incl. IE VAT
€205.00 - €205.00 excl. VAT
€252.15 - €252.15 incl. IE VAT
€ via quote
Availability: 3 in stock

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Lutron HomeWorks QS In-line Dimmer offers an advanced solution for controlling lighting and motor loads in residential and commercial environments. This in-line dimmer utilizes Lutron's patented Clear Connect RF technology to ensure reliable wireless communication with other HomeWorks devices. The compact design allows for simple retrofit installations, making it a convenient and versatile choice for enhancing your lighting control system.

Features:

  • Reverse-phase dimmer capable of controlling up to 250 W of incandescent/halogen/ELV loads and up to 1 A/150 W of LED loads
  • Switch rated for 6 AX of general-purpose lighting load and 2 A/0.5 HP of motor load
  • Compatible with HomeWorks hybrid repeaters for remote control and programming
  • Supports control via lighting scenes, scheduled events, and the Lutron Connect app
  • Small size for easy retrofit installation
  • Remote device association for adding controls without physical access

Specifications:

  • Power: 220 – 240 V~ 50/60 Hz
  • Typical Power Consumption: Dimmer/Switch: <0.5 W
  • Regulatory Approvals: CE (HQRK model only)
  • Operating Environment: 0°C to 40°C (32°F to 104°F), 0% to 90% humidity, non-condensing, indoor use only

Communication:

  • Communicates with the system through Radio Frequency (RF)
  • Must be located within 9 m (30 ft) of a hybrid repeater
  • System devices operate on 868 MHz frequencies

Protection and Memory

  • ESD Protection: Tested to withstand electrostatic discharge per IEC 61000-4-2
  • Surge Protection: Tested per IEEE C62.41-1991 standards
  • Power Failure Memory: Returns to previous state after power restoration

Mounting and Installation:

  • Ensure adequate space for convective cooling, removing any obstructions within 120 mm (4.75 in) of the load control
  • Avoid enclosing the load control in metal surroundings
  • Accepts wire gauges between 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG)

Device Limits

  • Supports up to 100 devices per RF link with repeater
  • Processor counts as one device and four locations are reserved for hybrid repeaters
  • Load controls have specific load type and capacity limits
