Lutron HomeWorks Motor Control Power Module

Lutron HomeWorks Motor Control Power Module

by Lutron
SKU LQSE-4M-D
€760.00 - €760.00 excl. VAT
€934.80 - €934.80 incl. IE VAT
€760.00 excl. VAT
€934.80 incl. IE VAT
€760.00 - €760.00 excl. VAT
€934.80 - €934.80 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

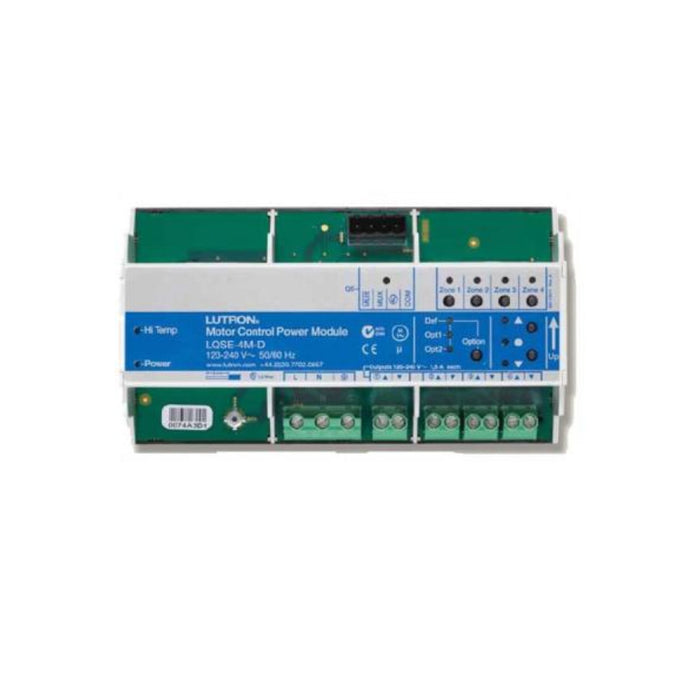

The Lutron HomeWorks LQSE-4M-D Motor Control Power Module is a versatile interface for integrating HomeWorks QS systems with AC blinds, shades, louvers, projection screens, or any compatible AC motor. This module provides four independently controllable AC raise/lower outputs from a common AC input feed, making it an essential component for automated motor control in home and commercial settings.

Features:

  • Seamless integration with HomeWorks QS systems
  • Four independently controllable AC raise/lower outputs
  • Fully programmable through HomeWorks system software
  • Mechanically interlocked outputs to prevent simultaneous activation
  • Supports up to 100,000 open/close cycles
  • Lightning strike protection up to 6000 V and 3000 A
  • LED indicators for status and diagnostics

Specifications:

  • Input voltage: 230 V~ 50/60 Hz
  • Maximum input current: 6 A
  • Standby power: less than 1 W
  • Maximum motor load per channel: 1.5 A
  • Designed for indoor use only
  • Operating temperature range: 0°C to 40°C (32°F to 104°F)
  • Calibration point maximum: 65°C (149°F)
  • Relative humidity: less than 90% non-condensing
  • Compliance: IEC/EN 60669-2-1, EN50428, CE, Lutron Quality Systems registered to ISO 9001.2008

Mounting and Installation:

  • Use an IP20 (minimum) rated consumer panel or breaker panel with integrated DIN rail
  • Module width: 9 DIN modules (161.7 mm / 6.4 in)
  • Ensure proper separation of mains and low-voltage wiring per local and national codes
  • Run hot/live, neutral, and ground/earth wires from a 230 V~ 50/60 Hz feed to the module
  • Set upper/open and lower/close limits for each motor as per manufacturer's instructions before proceeding with line voltage wiring

QS Link Wiring:

  • Uses IEC PELV/NEC Class 2 wiring
  • Total length of QS link must not exceed 610 m (2000 ft)
  • Use 1.0 mm² (18 AWG) conductor for control power (COM) for lengths under 150 m (500 ft)
  • Use 4.0 mm² (12 AWG) conductor for control power (COM) for lengths over 150 m (500 ft)
  • Use one twisted-shielded pair of 0.5 mm² (22 AWG) for data link (MUX, MUX)

Normal Mode Operation:

  • Zone Select button selects the desired zone; raise/lower buttons control the selected zone
  • Supports Open, Close, and Unaffected presets only
  • Does not support shade groups, areas, discrete shade levels, or scenes

Configurable Parameters

  • Minimum On time (Jog Time): 80 ms to 3520 ms in 80 ms increments (default: 80 ms)
  • Interlock delay: 320 ms, 560 ms, or 960 ms (default: 320 ms)
  • Maximum On time (Travel Time): 10 seconds to 450 seconds in 10-second increments (default: 80 seconds)
