Features
-
Ultimate Versatility: Easily install in-wall or on-wall, or hide it under a sofa or TV furniture with the optional DALI on-wall frame.
-
Low-Profile Installation: With a mounting depth of just 102 mm, the SUB S-100 offers unmatched placement flexibility without compromising on performance.
-
Powerful Cinema Performance: Features a 10-inch, ultra-shallow bass driver with Constant Surface Surround (CSS) technology for high power handling and precise low-end response.
-
Integrated Backbox Design: Fully enclosed cabinet simplifies installation—no additional backbox required.
-
Custom Amplification: Designed to pair with the PHANTOM CI AMP-2500 DSP amplifier, delivering up to 2 x 500 watts of Class-D power.
Compact and Versatile Design
The PHANTOM IW SUB S-100 is the ultimate solution for discreet bass performance. Its ultra-slim profile allows for in-wall or on-wall mounting, or it can be positioned on the floor beneath a sofa or TV stand. Whether you're enhancing a small living room or a large home theater, the SUB S-100 adapts perfectly to your setup.

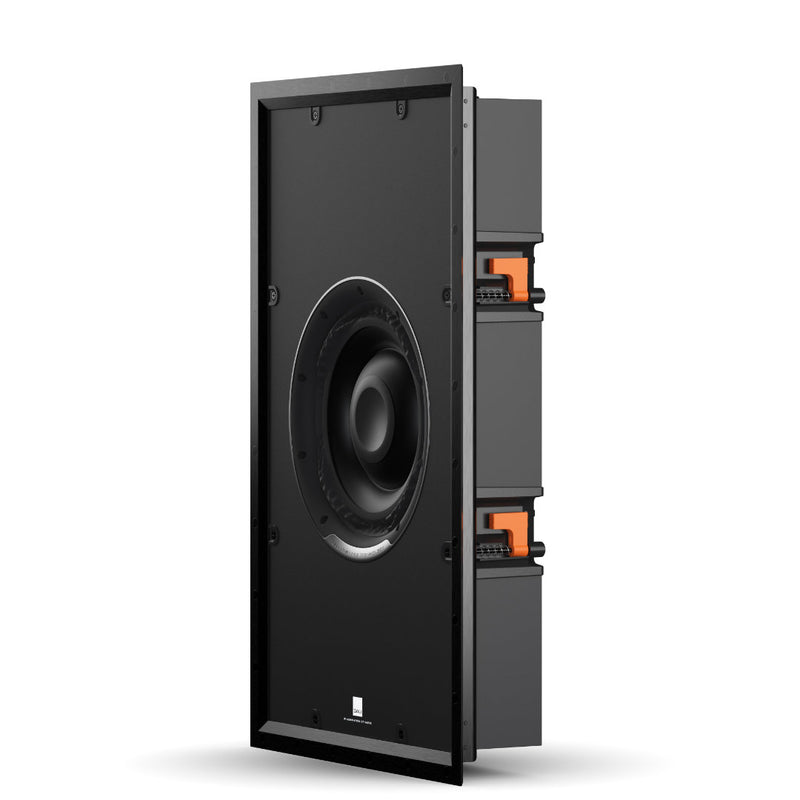

Ultra-Shallow 102 mm Mounting Depth
Designed with a fully enclosed, ultra-slim cabinet, the SUB S-100 fits seamlessly into most standard walls. This rigid and low-resonance enclosure ensures optimal performance, inspired by the design principles of the PHANTOM K-60 LP speaker, while maintaining exceptional low-end reproduction.
Innovative CSS Technology
The 10-inch, long-stroke bass driver utilizes Constant Surface Surround (CSS) technology, co-developed with Purifi Audio in Denmark. This groundbreaking design features a unique low-loss rubber surround geometry, enhancing linear excursion and reducing distortion for deep, precise bass.
Hassle-Free Installation
The fully enclosed cabinet eliminates the need for a separate backbox, making installation simple and straightforward. The included cut-out template ensures a perfect fit, while spring-loaded dogleg brackets secure the subwoofer into most standard walls for a secure, flush finish.
Perfectly Matched Amplification
The SUB S-100 pairs exclusively with the PHANTOM CI AMP-2500 DSP amplifier, delivering 2 x 500 watts of Class-D power. This amplifier can drive up to four SUB S-100 subwoofers, making it ideal for even the largest home theaters. With integrated DSP fine-tuned for the SUB S-100, the amplifier ensures perfectly balanced and impactful bass.
Experience Deep, Immersive Sound
Designed to deliver high power, low distortion, and an exceptional listening experience, the PHANTOM IW SUB S-100 is the perfect addition to your home audio or theater system. Whether you're upgrading an existing setup or starting fresh, this subwoofer offers unparalleled performance and versatility.
Specifications:
-
Frequency Range: 26 - 250 Hz, ±3 dB
-
Sensitivity: 84 dB @ 1 m for 2.83 V
-
Nominal Impedance: 6 ohm
-
Recommended Amplifier Power: 200 - 500 W RMS
-
Recommended Amplifier: DALI PHANTOM AMP-2500 DSP
-
Maximum SPL: 110 dB @ 1 m
-
Low Frequency Driver: 1 x 10 inch long throw, low profile
-
Low Frequency Diaphragm: Anodised aluminium
-
Connection Input: Single wire
-
Enclosure Type: Closed box / Infinite baffle
-
Installation Location: In-wall / On-wall / Floor
-
Outer Dimensions (incl. grille): 657 x 412 x 107 mm / 25.87 x 16.22 x 4.22 inches
-
Outer Dimensions (excl. grille): 647 x 402 x 106 mm / 25.5 x 15.9 x 4.21 inches
-
Cut-out Dimensions (H x W): 615 x 370 mm / 24.2 x 14.5 inches
-
Mounting Depth: 102 mm / 4.02 inches
-
Wall Thickness (total dog-leg span): 10 - 70 mm / 0.4 - 2.8 inches
-
Weight (incl. grille): 17.25 kg / 38.03 lb
-
Shipping Weight: 21 kg / 46.3 lb
-
Finish: Black
-
Accessories: Cut-out template, Front grille, Rubber pads
-
Optional Accessories: PHANTOM PHANTOM OW frame S-80, DALI CONNECT SC F222C (speaker cable), DALI CONNECT SC F215C (speaker cable)
* All SUB S-100 specifications are measured driven by the PHANTOM CI AMP-2500 DSP amplifier
