Key Features
-
Enhanced Room Availability Visibility: Provides a 180° viewing angle with bright green illumination when the room is available and red when occupied, clearly visible up to 150 feet.
-
Customizable RGB Color Mixing: Supports RGB LED color mixing for nearly any color via Crestron control systems, with options to alternate, fade, or blink for specific applications.
-
Custom Engraving Options: The acrylic sign face can be custom engraved with room names, numbers, or icons, and is visible on both sides for easy identification.
-
Simple Installation: Mounts to a standard 1-gang electrical box or plaster ring, with single USB or Cresnet® connectivity for power and control.
-
Mullion Mounting Option: Optional SSW-MUMK mullion mount kit allows installation on glass walls, windows, or partitions for flexible placement.
-
Energy Efficient: Operates on less than 2W, making it a low-power solution for 24/7 room availability indication.
Room Availability Status
For streamlined room scheduling, the SSW-102-EL connects via USB to Crestron touch screens like TSS-7, TSS-10, TSW-760, and TSW-1060. Controlled by the scheduling application, it synchronizes with Crestron Fusion® or other scheduling software, illuminating green for available and red for occupied rooms, enhancing hallway visibility and accessibility.
Custom RGB Colors for Enhanced Flexibility
With RGB color mixing, the SSW-102-EL can be programmed to display nearly any color, making it adaptable to specific room or company branding. When connected via Cresnet, color effects like alternating, fading, and blinking can be configured for added functionality.

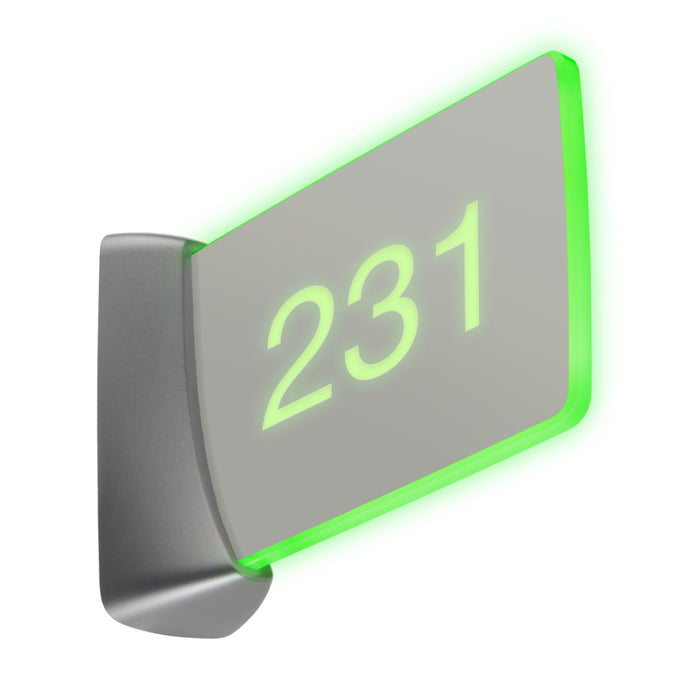

Customizable Engraving for Clear Identification
The two-sided acrylic face supports custom engraving, allowing for clear room identification with names, numbers, or icons. The engraving is visible from up to 150 feet when illuminated, providing improved legibility for long corridors or open spaces.
Specifications
-
Material: Acrylic, two-sided
-
Illumination: Edgelit RGB LED, red/green or full RGB color mixing
-
USB Connectivity: USB 2.0 device for connection to TSS-7, TSS-10, TSW-760, TSW-1060 series touch screens
-
Cresnet Connectivity: Cresnet network slave mode
-
Power Consumption: 1.2W at 5V USB; 2W at 24VDC via Cresnet
-
Environmental: Operating Temperature: 41 to 113 °F (5 to 45 °C); Humidity: 10% to 90% RH (non-condensing)
-
Mounting: Mounts to a 1-gang electrical box or optional mullion mount kit
-
Dimensions: H: 6.41 in (163 mm); W: 2.79 in (71 mm); Depth: 8.57 in (218 mm), projects 8.43 in (214 mm) from wall
-
Compliance: UL Listed, IC, FCC Part 15 Class B digital device
The Crestron SSW-102-EL Room Availability Hallway Sign provides an efficient, customizable, and highly visible solution for corporate room scheduling, combining energy efficiency, easy installation, and flexible design for professional environments.
