Crestron SAROS DM-NAX-IC4A 3" Active In-Ceiling PoE+ Speaker (Single)

Crestron SAROS DM-NAX-IC4A 3" Active In-Ceiling PoE+ Speaker (Single)

by Crestron
SKU 6513069
€1,098.00 - €1,098.00 excl. VAT
€1,350.54 - €1,350.54 incl. IE VAT
€1,098.00 excl. VAT
€1,350.54 incl. IE VAT
€1,098.00 - €1,098.00 excl. VAT
€1,350.54 - €1,350.54 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: White Textured

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron Saros® DM-NAX-IC4A is a high-performance 3-inch active in-ceiling PoE+ speaker designed for professional-grade audio performance with audio-over-IP (AoIP) support. Ideal for a variety of commercial applications, the Saros DM-NAX-IC4A features a Balanced Mode Radiator (BMR) transducer for enhanced clarity and wider dispersion compared to traditional conical drivers.

Key Features

  • Audio-over-IP (AoIP) in-ceiling speaker
  • Connects directly to a managed network to route to or from DM NAX® audio-over-IP, DM NVX® A/V-over-IP, or AES67 devices
  • Interoperable with Dante® audio networking devices via AES67 compatibility
  • Powers up to three satellite SAROS IC4P-W speakers (sold separately)
  • Balanced Mode Radiator (BMR) transducer offers enhanced clarity and wider dispersion than a typical conical driver
  • Clean, contemporary grille design
  • Two-step toggle clamps for quick and easy installation
  • Includes tile bridge for installation in a drop-tile ceiling
  • 80 Hz to 24 kHz frequency response
  • 170° coverage for speech content, 140° coverage for music

Audio-over-IP

The SAROS DM-NAX-IC4A-W receives up to four channels of DM NAX audio-over-IP or AES67 encoded audio over a standard IP network. DM NAX devices can also receive the audio stream from DM NVX A/V-over-IP devices and are interoperable with Dante audio devices via the AES67 compatibility mode enabled through Dante Controller® software. The speaker features a built-in 25.5 W PoE+ audio amplifier that drives the local BMR transducer and provides power to three additional SAROS IC4P-W passive speakers.

Digital Signal Processing

Digital Signal Processing (DSP) capabilities such as bass and treble boost and cut, speaker protection and limiting, a full 10-band EQ per output, and output delay can be configured through the web configuration interface. In addition to the audio channel that feeds the local BMR transducer, each RJ-45 output has a discrete audio channel for a total of four channels of available audio processing.

Simple and Clean Installation

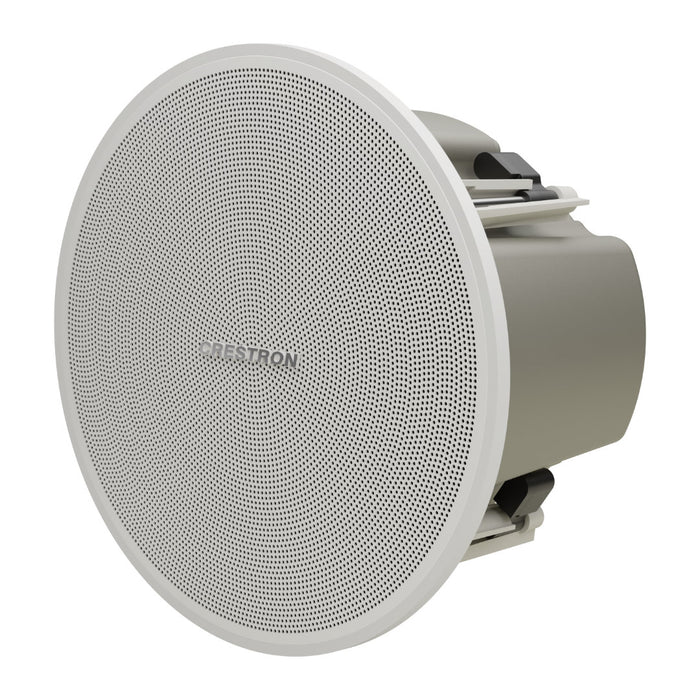

The Saros DM-NAX-IC4A is designed for quick and easy installation and years of reliable performance. Its unobtrusive and contemporary grille achieves an appearance well-suited for use in restaurants, retail spaces, houses of worship, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place.

Plenum Rated

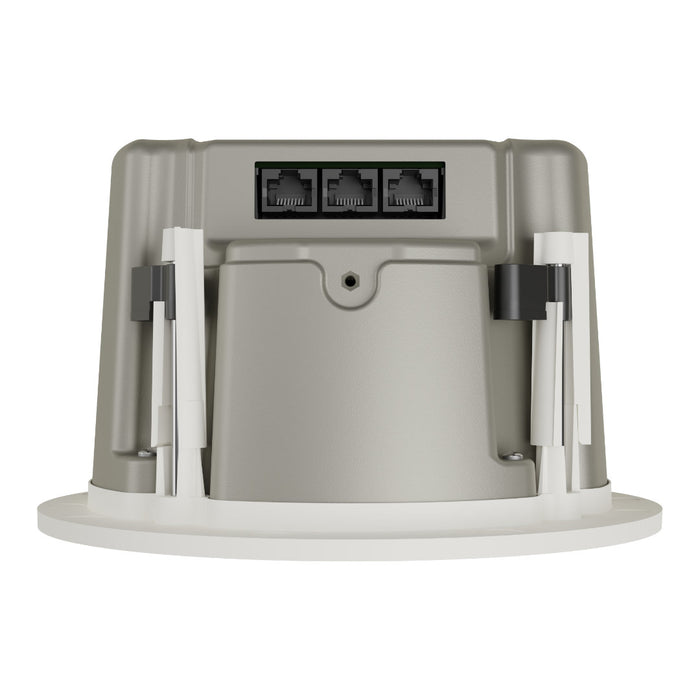

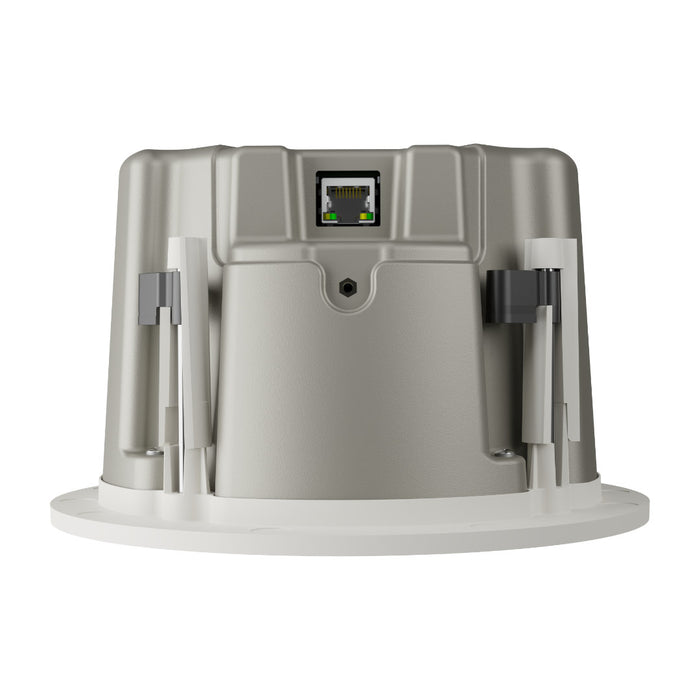

The speaker is housed in an integral metal back can, which meets the requirements of UL® 2043 for installation in a plenum space. The wiring connections are accessible behind rear cover panels. Three connections for additional passive speakers are available to expand the total audio coverage area.

Specifications

  • Transducer: 2.83 in. (72 mm) Balanced Mode Radiator (BMR)
  • Frequency Response: 80 Hz to 24 kHz (±3 dB)
  • Sensitivity: 86 dB @ -20 dBFS/1 m
  • Coverage: 170° conical (speech, up to 4 kHz); 140° conical (music, up to 8 kHz)
  • BMR Power Handling: 25 W
  • BMR Power Output: Up to 21 W
  • EQ Filter Types: EQ, High Pass, Low Pass, Treble Shelf, Bass Shelf, Notch
  • EQ Center Frequency: 10 to 20,000 Hz per band
  • EQ Gain: +20/-40 dB per band
  • EQ Bandwidth: 0.1 to 4.0 octaves per band

Power

  • PoE+: IEEE 802.3at Type 2 Class 4 (25.5 W) compliant

Weights & Dimensions

  • Diameter: 7.49 in. (191 mm) not including mounting clamps
  • Depth: 4.28 in. (109 mm) mounting depth; 4.50 in. (115 mm) including grille
  • Weight: 2.6 lb (1.2 kg)
