Crestron Reference IW4X8 4" x 8" In-Wall Speaker (Single)

Crestron Reference IW4X8 4" x 8" In-Wall Speaker (Single)

by Crestron
SKU 6511858
€417.00 - €417.00 excl. VAT
€512.91 - €512.91 incl. IE VAT
€417.00 excl. VAT
€512.91 incl. IE VAT
€417.00 - €417.00 excl. VAT
€512.91 - €512.91 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

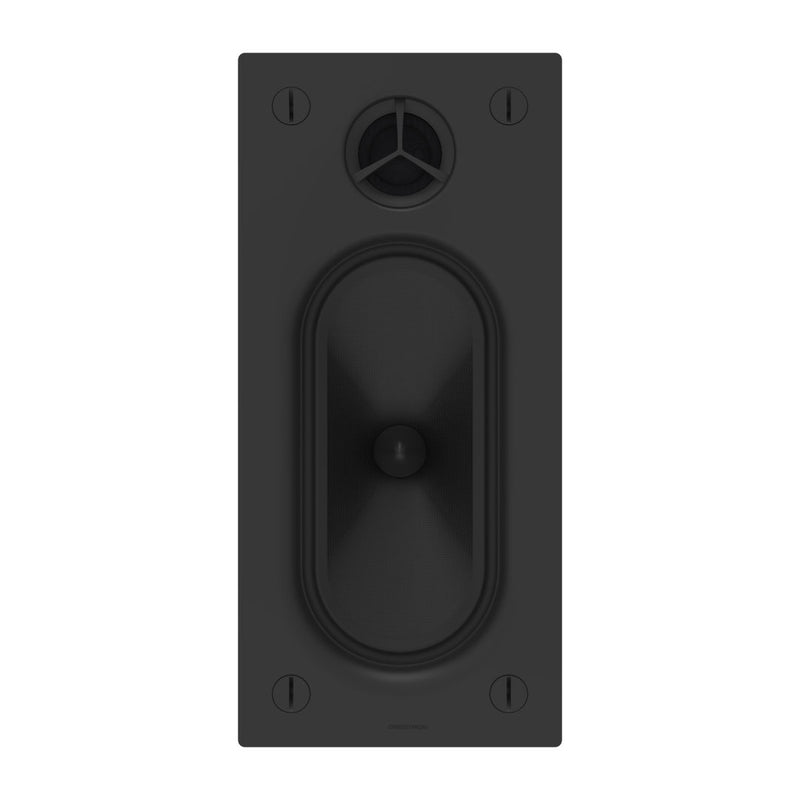

The Crestron Reference IW4X8 is a high-performance 4-inch x 8-inch in-wall speaker designed for audiophile-quality sound in both residential and commercial  environments. This 2-way speaker features a racetrack woven glass fiber woofer and a Silk DPSD™ tweeter, ensuring excellent sound clarity and durability. The speaker's turn and click Spring Lock™ mounting system makes installation easy and secure.

Key Features

  • Audiophile performance in-wall speaker
  • 4-inch x 8-inch (102 mm x 203 mm) racetrack woven glass fiber woofer
  • 1-inch (25 mm) Silk DPSD™ tweeter

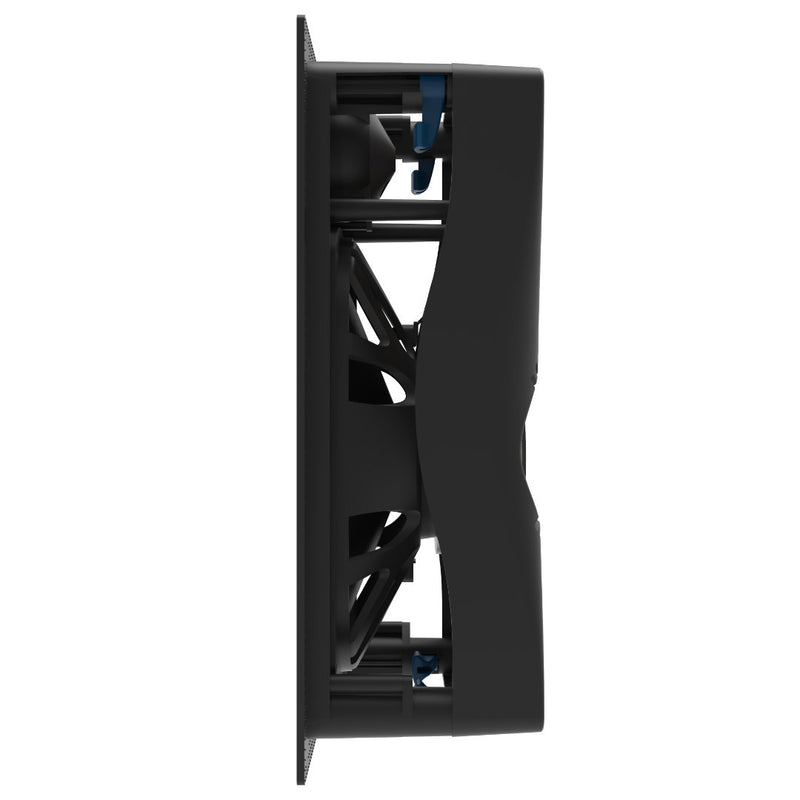

  • Turn and click Spring Lock™ mounting system
  • 100 W (Program) and 200 W (Peak) power handling
  • 60 Hz to 20 kHz (±3 dB) frequency response
  • 8 Ohms nominal impedance

Performance

Crestron® Reference speakers made by Origin Acoustics deliver the pinnacle of performance for demanding residential installations. Select materials, top shelf components, and a high-end appearance underscore the design behind each model. The result is a complete line of in-wall speakers suitable for installation in luxury residential applications, restaurants, retail spaces, universities, and office buildings. The REFERENCE IW4X8-W-T-EACH promises the best in installed audio design, delivering stunning sound quality while minimizing impact to the customer's decor.

Specifications

  • Woofer: 4-inch x 8-inch (102 mm x 203 mm) racetrack woven glass fiber woofer
  • Tweeter: 1-inch (25 mm) Silk DPSD™ tweeter
  • Crossover Slope: 12 dB/oct
  • Crossover Point: 3 kHz
  • Impedance: 8 Ohms nominal
  • Frequency Response: 60 Hz to 20 kHz (±3 dB)
  • Frequency Range: 45 Hz to 20 kHz (±10 dB)
  • Power Handling: 100 W (Program), 200 W (Peak)
  • Sensitivity: 86 dB @ 1W/1m

Weights & Dimensions

  • Height without grille: 11.81 inches (300 mm)
  • Width without grille: 5.51 inches (140 mm)
  • Depth: 3.74 inches (95 mm)
  • Rectangle Grille Length: 12.40 inches (315 mm)
  • Rectangle Grille Width: 6.10 inches (155 mm)
  • Recommended Cutout Height: 11 inches (279 mm)
  • Recommended Cutout Width: 4.68 inches (119 mm)
  • Weight: 3.8 lb (1.72 kg)
