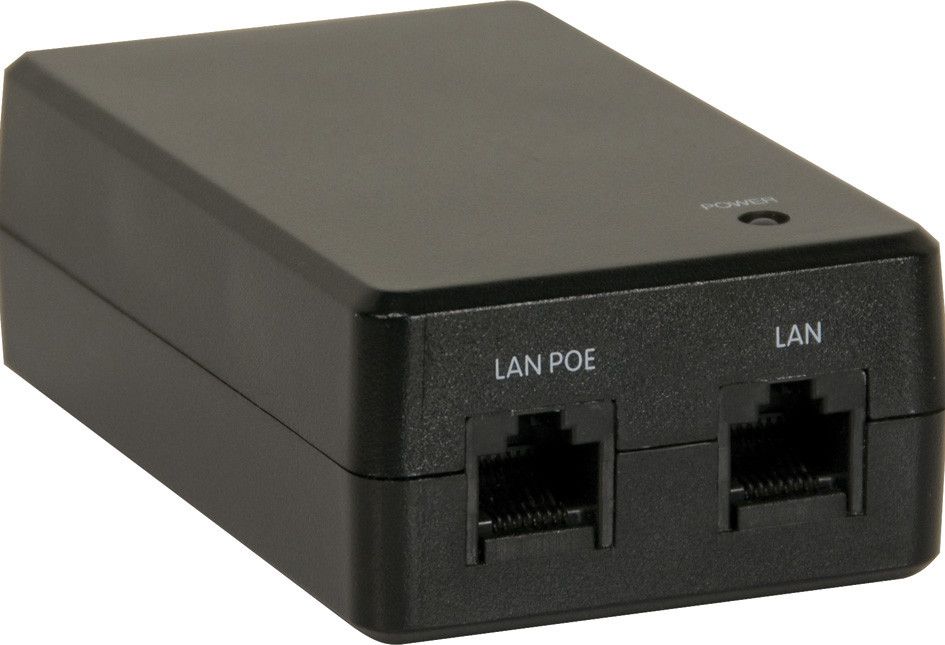

This injector is designed to meet the demanding requirements of modern network infrastructures. With a power output of 350 mA at a nominal 48 Volts DC, it provides reliable and consistent power to compatible PoE devices. The unit is compatible with both 10BaseT and 100BaseTX Ethernet ports, offering broad integration potential with existing network equipment.
Installation is simple with one RJ45 input for data and a second RJ45 output for combined power and data, along with a standard IEC 320 C14 socket for AC power. The tri-color LED indicator enhances usability by displaying system status at a glance—amber for available power without a connected device, and green when a PoE device is drawing power.
Encased in a sleek black plastic desktop housing, the PWE-4803RU blends unobtrusively into any workspace while maintaining excellent thermal performance. It dissipates only 28 BTU per hour, supporting extended operation in ambient temperatures ranging from 32°F to 104°F (0°C to 40°C), and relative humidity levels of 10% to 90% (non-condensing).
This compact unit weighs only 6.0 oz (169 g), making it ideal for desktop setups or mounting in tight spaces without adding unnecessary bulk. With its standards-based design and simple plug-and-play setup, the PWE-4803RU is an excellent solution for expanding your PoE network efficiently and cost-effectively.
-
Output Rating: 350 mA max @ 48V DC nominal
-
Power Requirements: 100–250V AC, 50/60 Hz
-
Connectors:
- LAN: (1) 8-wire RJ45 (female), 10BaseT/100BaseTX
- LAN PoE: (1) 8-wire RJ45 (female)
- Main Power Input: (1) IEC 320 C14 socket
-
LED Indicators: Tri-color LED (Amber = power available, no device; Green = device connected)
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Humidity: 10% to 90% RH (non-condensing)
-
Heat Dissipation: 28 BTU/Hr
-
Enclosure: Black plastic, desktop
-
Dimensions: 1.35 in (H) x 2.40 in (W) x 3.98 in (D)
-
Weight: 6.0 oz (169 g)
