Crestron HD-TXCA-4KZ-101 DM Lite 4K60 Transmitter for HDMI, RS-232, IR, and Analog Audio Signal Extension over CATx Cable

Crestron HD-TXCA-4KZ-101 DM Lite 4K60 Transmitter for HDMI, RS-232, IR, and Analog Audio Signal Extension over CATx Cable

by Crestron
SKU 6511920
€550.00 - €550.00 excl. VAT
€676.50 - €676.50 incl. IE VAT
€550.00 excl. VAT
€676.50 incl. IE VAT
€550.00 - €550.00 excl. VAT
€676.50 - €676.50 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron HD-TXCA-4KZ-101 is a DM Lite® 4K60 4:4:4 transmitter designed to extend HDMI®, RS-232, IR, and analog audio signals over a single CATx cable. This versatile transmitter is ideal for professional AV installations in conference rooms, classrooms, and other commercial environments. It supports video resolutions up to 4K60 4:4:4 with HDR10, HDR10+, and Dolby Vision® formats, ensuring high-quality video transmission. The HD-TXCA-4KZ-101 also offers analog audio embedding and S/PDIF optical digital audio return, making it a comprehensive solution for high-definition AV distribution.

Key Features

  • Interoperability with DM Lite® receivers and DMPS Lite™ switchers
  • Supports 4K60 4:4:4 video with HDR10, HDR10+, and Dolby Vision®
  • Extends HDMI®, RS-232, IR, and analog audio signals over CAT5e or higher cable
  • Transmission distance up to 130 ft (40 m) for UHD and 4K signals, and up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
  • HDCP 2.3 compliant for secure content delivery
  • Analog audio embedding for balanced/unbalanced stereo audio
  • S/PDIF optical digital audio return for transmitting audio back to the AV receiver
  • Compact, surface-mountable design for flexible installation
  • Powered via 24VDC power pack (included) or from a remote DM Lite receiver or DMPS Lite switcher

4K60 4:4:4 & HDR Support

The HD-TXCA-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling, delivering stunning image quality. It also supports HDR10, HDR10+, and Dolby Vision® formats, ensuring vibrant colors and deep contrast for an enhanced viewing experience. This makes the transmitter ideal for applications that require high-quality video transmission over long distances.

Analog Audio Embedding

The analog audio input on the HD-TXCA-4KZ-101 allows a balanced or unbalanced stereo audio source to be embedded with the video signal from the HDMI input. An audio selection pushbutton enables users to switch between analog and HDMI audio inputs as needed, providing flexibility in AV installations.

S/PDIF Optical Digital Audio Return

The HD-TXCA-4KZ-101 receives S/PDIF optical digital audio from a device connected to the HD-RXCA-4KZ-101 receiver and transmits the audio back to an AV receiver. Supported digital audio formats include Dolby Digital®, DTS®, and LPCM up to 6 channels, ensuring high-quality audio performance.

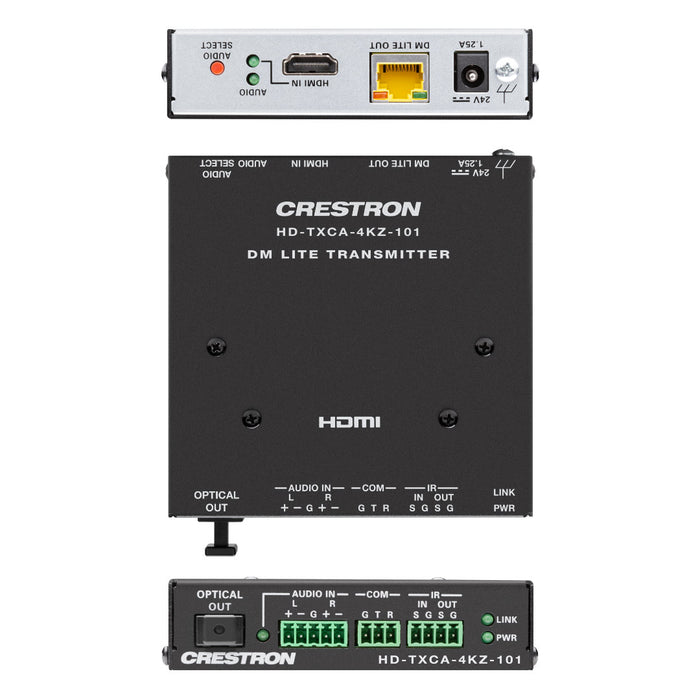

Compact, Surface-Mountable Design

Designed for easy installation, the HD-TXCA-4KZ-101 features a compact, surface-mountable design that can be discreetly mounted under tables, behind credenzas, or inside podiums. It can also be attached to a single rack rail in an equipment cabinet. The transmitter can be powered using the included 24VDC power pack or from a connected DM Lite receiver or DMPS Lite switcher, offering versatile installation options.

The Crestron HD-TXCA-4KZ-101 is a robust and flexible solution for extending HDMI, RS-232, IR, and analog audio signals in professional AV environments. Its comprehensive feature set and easy integration make it an ideal choice for modern AV installations.
