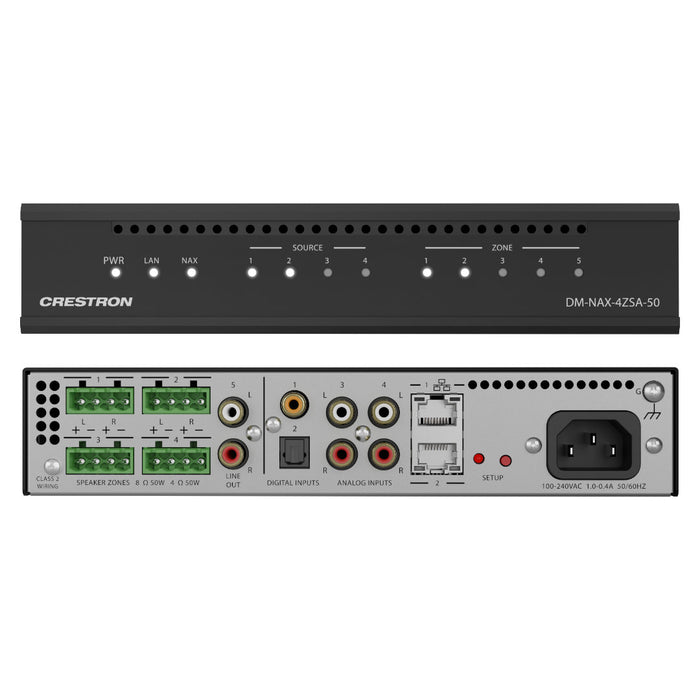

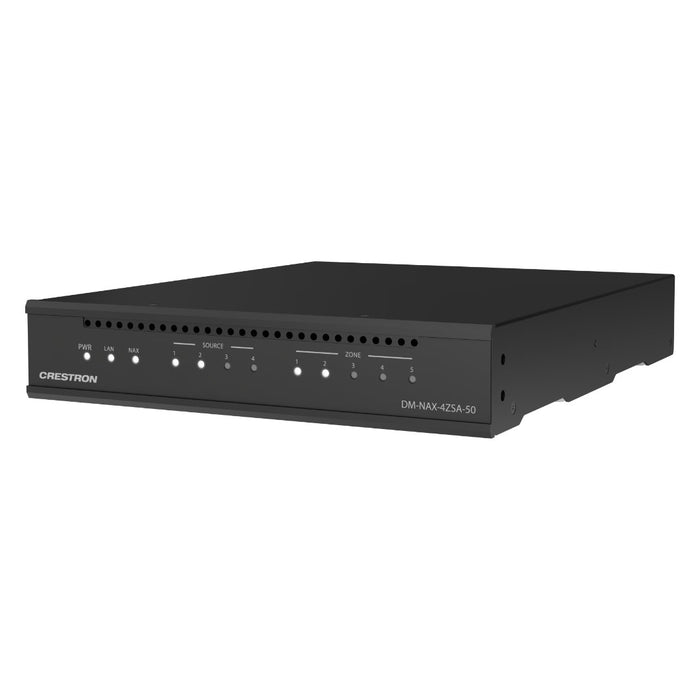

Crestron DM-NAX-4ZSA-50 4+1 Zone Streaming Amplifier

Crestron DM-NAX-4ZSA-50 4+1 Zone Streaming Amplifier

by Crestron
SKU 6512320
€3,046.00 - €3,046.00 excl. VAT
€3,746.58 - €3,746.58 incl. IE VAT
€3,046.00 excl. VAT
€3,746.58 incl. IE VAT
€3,046.00 - €3,046.00 excl. VAT
€3,746.58 - €3,746.58 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron DM-NAX-4ZSA-50 is a next-generation Audio-over-IP (AoIP) amplifier that brings Crestron multiroom audio distribution to the network. It provides four amplified stereo speaker outputs and one analog line-level stereo output, making it ideal for both residential and commercial installations. This amplifier features robust DSP capabilities, built-in streaming services support, and Gallium Nitride (GaN) Class D amplification, ensuring high efficiency and audio performance.

Key Features

  • Audio-over-IP (AoIP) amplifier
  • Built-in streaming services support
  • Full DSP capabilities
  • Gallium Nitride (GaN) Class D amplification
  • 50 W of output power per channel
  • Four amplified output zones and one additional line-level output zone
  • 1 RU high, half-rack width modular form factor
  • Interoperable with Dante® audio networking devices via AES67 compatibility
  • Built-in chime support
  • Streamlined configuration through a web interface
  • Seamless Crestron system integration with SIMPL Windows programming

Audio-over-IP

The DM-NAX-4ZSA-50 sends and receives DM NAX and AES67 encoded audio over a standard IP network. A single DM NAX system can handle audio distribution between 32 DM NAX devices and supports up to 256 audio output zones. DM NAX devices can seamlessly pull and distribute audio from DM NVX sources.

Streaming and Casting Services

A dedicated streaming service player is built-in for each zone, supporting Internet Radio, Spotify Connect™, Pandora®, SiriusXM®, TIDAL™, Deezer®, Qobuz®, SOUNDMACHINE®, Podcasts, and more. The DM-NAX-4ZSA-50 delivers streaming, routing, distribution, and amplification in a single device. Streams can be routed to other non-streaming AoIP devices.

Chimes

A library of chimes is built into the unit. Chimes can be assigned to different zones to help identify them. Whenever a chime is triggered, the zone audio will duck or pause, so the chime can be clearly heard over active media until the chime concludes.

Digital Signal Processing (DSP)

DSP capabilities such as bass and treble boost and cut, loudness, adjustable delay, speaker protection and limiting, tone profiles, a full 10-band EQ per output, and an option to have line output as a fixed or variable level with or without DSP applied are available. Speaker profiles for first and third-party speaker models are built in to simplify output DSP tuning.

Encoder and Decoder Functionality

The DM-NAX-4ZSA-50 can operate as a network AoIP encoder and decoder. The local input sources on one amplifier can be sent as AoIP streams to DM NAX, Dante, or AES67 capable devices. Simultaneously, the DM-NAX-4ZSA-50 can receive AoIP streams from these same devices and decode them for local output.

Modular Design

The DM-NAX-4ZSA-50 is housed in a half-width rack-mountable form factor that can be installed individually or ganged together in a single rack space. The amplifier is high-density stackable with other Crestron DM NAX or X-Series amplifiers, allowing multiple units to be installed vertically in an equipment rack without needing extra ventilation space. Rack mount parts are included, so no additional mounting accessories or rack shelves are required.

Gallium Nitride (GaN) Amplification

The DM-NAX-4ZSA-50 features GaN Class D technology, allowing higher output power to fit into small form factors without sacrificing efficiency or audio performance. The DM-NAX-4ZSA-50 is capable of 50 W per channel of amplifier output power in a half-width 1RU housing.
