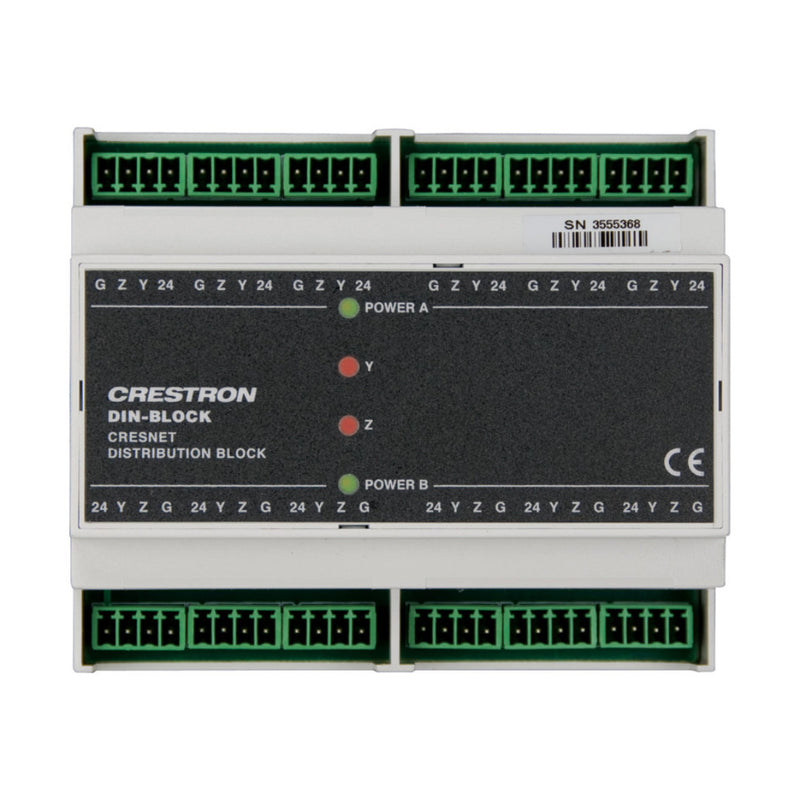

Crestron DIN-BLOCK DIN Rail Cresnet Distribution Block

Crestron DIN-BLOCK DIN Rail Cresnet Distribution Block

by Crestron
SKU 6501750
€170.00 - €170.00 excl. VAT
€209.10 - €209.10 incl. IE VAT
€170.00 excl. VAT
€209.10 incl. IE VAT
€170.00 - €170.00 excl. VAT
€209.10 - €209.10 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron DIN-BLOCK is a DIN rail-mounted Cresnet distribution block designed to facilitate the termination of Cresnet wiring at a head end or distribution point. It enables modular installation alongside Crestron DIN Rail lighting and automation control modules and other third-party DIN rail mountable devices.

Key Features

  • DIN rail-mounted Cresnet distribution block
  • Facilitates termination of Cresnet wiring
  • Modular installation alongside other DIN rail devices
  • Supports combinations of homerun and daisy-chain wiring
  • Connects up to 12 separate Cresnet cables in parallel
  • Two separate power groups for Cresnet power distribution
  • Diagnostic LEDs for power and data activity
  • Easy installation and servicing

Cresnet Distribution

Cresnet is the communications backbone for Crestron lighting modules, wall box dimmers, shade controllers, thermostats, keypads, touch panels, and many other devices. This flexible 4-wire bus allows for combinations of homerun and daisy-chain wiring, and the DIN-BLOCK provides a simple means for connecting up to 12 separate Cresnet cables in parallel as part of any-sized network.

Cresnet Power Distribution

In addition to data, Cresnet carries 24 Volts DC for powering the devices connected to it. The Cresnet ports on the DIN-BLOCK are arranged into 2 separate power groups, providing an easy way to manage the distribution of power for a complete Cresnet network. A separate power supply may be dedicated to each group, or a single supply can be connected to both groups as needed. Each group supports up to 75 Watts.

DIN Rail Installation

The DIN-BLOCK is designed to snap onto a standard DIN rail for installation in a wall mount enclosure or mounted on a wall panel. Wiring connections are made using detachable screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. Diagnostic indicators are positioned on the center front panel. When installed in an enclosure utilizing 45 mm cutouts, the DIN-BLOCK’s front panel stays visible while the connections are concealed.
