Crestron DIN-1DIMU4 DIN Rail Universal Dimmer (4-Channel, 1 Feed)

Crestron DIN-1DIMU4 DIN Rail Universal Dimmer

by Crestron
SKU 6501748
€688.00 - €688.00 excl. VAT
€846.24 - €846.24 incl. IE VAT
€688.00 excl. VAT
€846.24 incl. IE VAT
€688.00 - €688.00 excl. VAT
€846.24 - €846.24 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

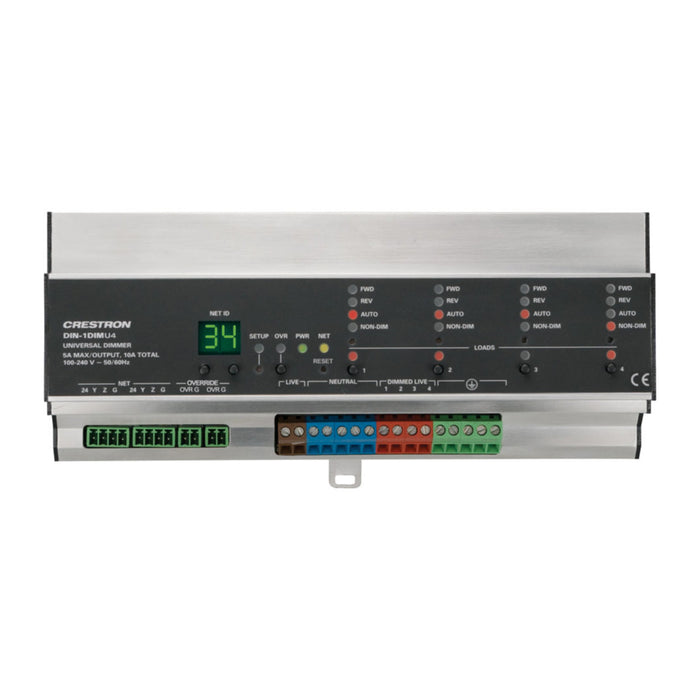

The Crestron® DIN-1DIMU4 is a versatile 4-channel universal lighting control module designed for both forward and reverse phase dimming. It supports a range of dimmable load types, including 120V and 220-240V electronic and magnetic low-voltage, incandescent, neon/cold cathode, 2-wire dimmable fluorescent, and non-dimmable lighting loads up to 5A per channel, with a total of 10A.

Each channel can auto-detect the connected load type and select the appropriate operating mode, ensuring compatibility with various lighting types. This dimmer module also features phase-synchronous detection circuitry to minimize noise, reduce lamp flicker, and compensate for fluctuations in line voltage and frequency.

Key Features:

  • 4 channels of forward or reverse phase dimming
  • Auto load detection
  • 120 to 240 Volt 50/60 Hz operation
  • Selectable non-dim mode
  • Extreme stability in noisy environments
  • Short circuit and overcurrent protection
  • Primary air-gap relay
  • Override input
  • Cresnet® wired communications
  • Setup via front panel or software
  • Programmable functionality using a Crestron® Control System
  • 12M wide DIN rail mounting
  • CEC Title 24 2013 Compliant

The DIN-1DIMU4 includes built-in overcurrent protection to prevent failure due to excessive loading or improper wiring. A primary air-gap relay provides safe servicing and changing of light bulbs by isolating the power when all channels are turned off. Additionally, an override input allows external control to set each channel output to its preset level.

Installation is made easy with the DIN rail mounting design, allowing the module to snap onto a standard DIN rail in a wall mount enclosure. All wiring connections are accessible from the front, and setup controls and indicators are conveniently positioned on the front panel.
