Bowers & Wilkins CCM664SR In-Ceiling Speaker (Single)

Bowers & Wilkins CCM664SR In-Ceiling Speaker (Single)

by Bowers & Wilkins
SKU BW-FP29610
€365.05 - €365.05 excl. VAT
€449.01 - €449.01 incl. IE VAT
€365.05 excl. VAT
€449.01 incl. IE VAT
€365.05 - €365.05 excl. VAT
€449.01 - €449.01 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

Convincing stereo sound from a compact, high-performance 2-way dual-channel in-ceiling speaker.

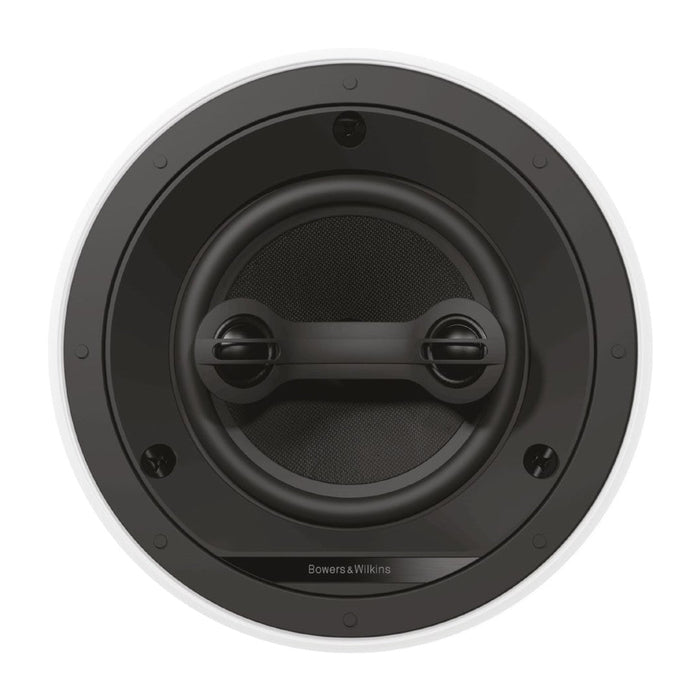

The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm (6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel. The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.

Specifications:

  • Description: 2-way dual channel in-ceiling system
  • Drive Units: 2x ø20mm (1in) soft dome tweeter, 1x ø150mm (6in) black glassfibre cone bass/midrange
  • Frequency Range (-6dB): 48Hz – 30kHz
  • Recommended Amp Power: 25 – 80w (per channel)
  • Sensitivity SPL (2.83V, 1m): 82dB (per channel), 88dB (both channels driven)
  • Impedance Nominal (min): 8Ω (4Ω) (per channel)
  • Frame diameter: 240mm
  • Cut-out diameter: 202mm
  • Depth behind surface: 133mm
  • Protrusion: 4mm
  • Pre-mount Kit: C6
  • Back box: 6C
