Crestron TSW-770-LB Room Availability Light Bar for TSW-770 Series Touch Screens

Crestron TSW-770-LB Room Availability Light Bar for TSW-770 Series Touch Screens

by Crestron
SKU 6511123
€146.00 - €146.00 excl. VAT
€179.58 - €179.58 incl. IE VAT
€146.00 excl. VAT
€179.58 incl. IE VAT
€146.00 - €146.00 excl. VAT
€179.58 - €179.58 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Black Smooth

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

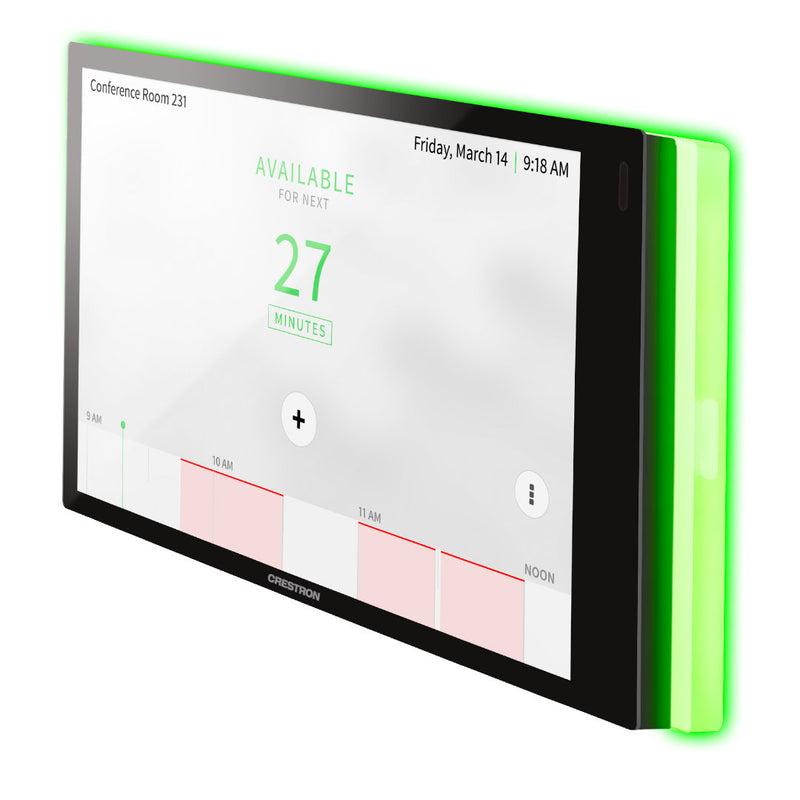

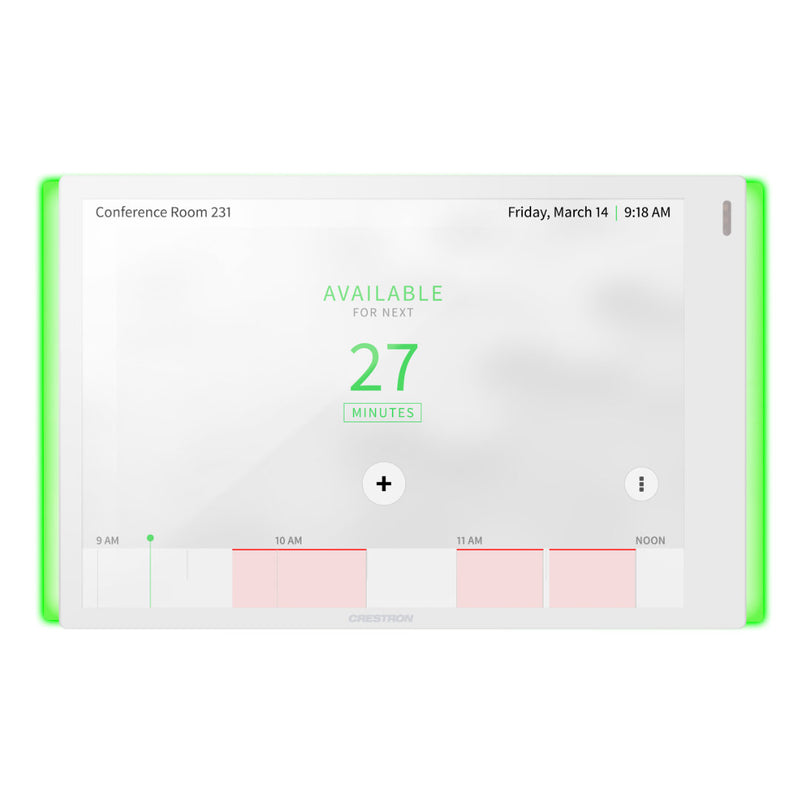

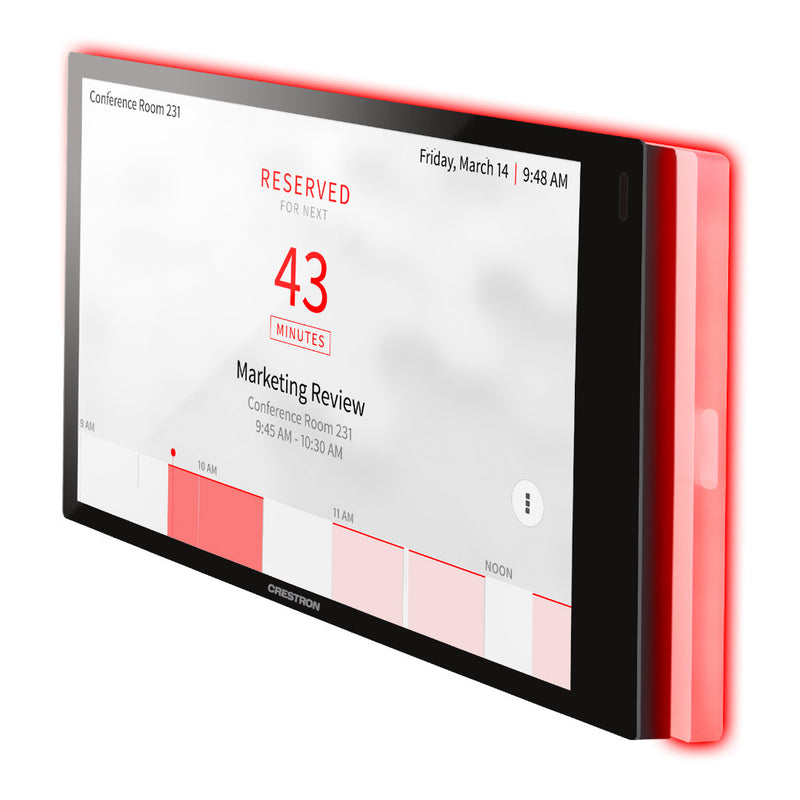

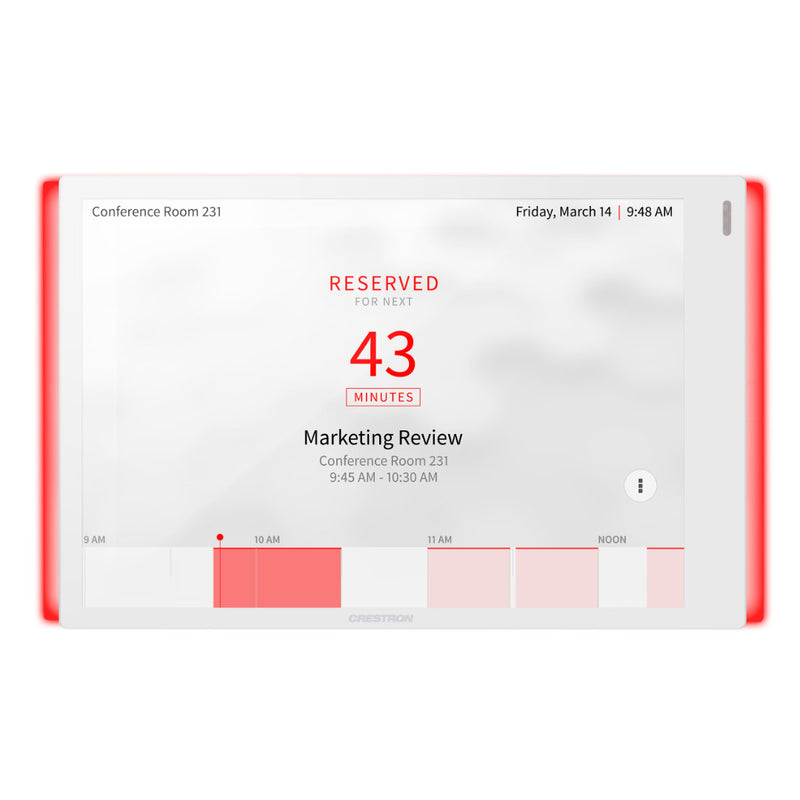

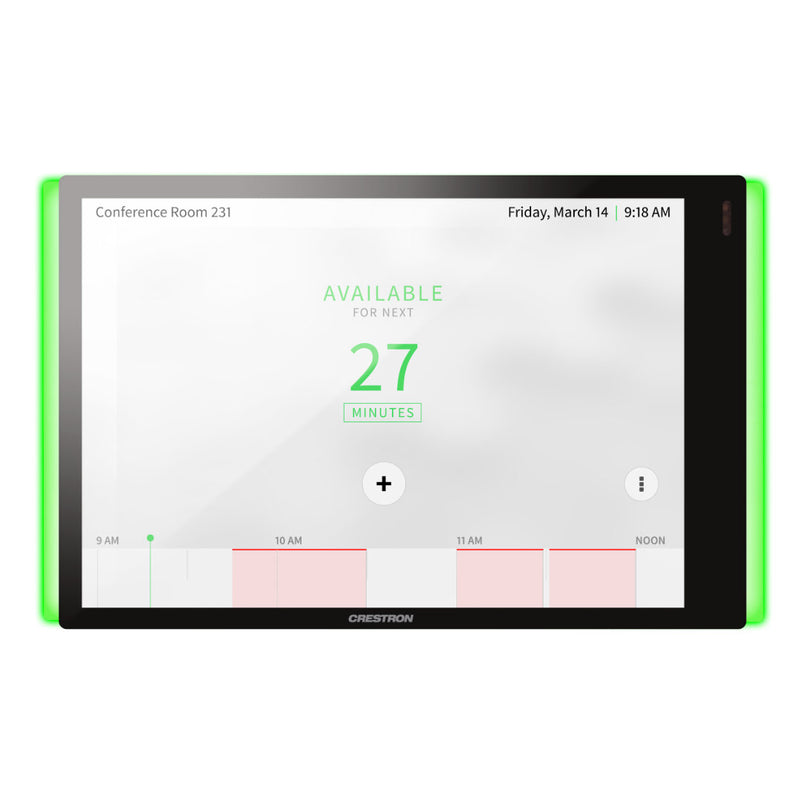

The Crestron TSW-770-LB Room Availability Light Bar is designed to work seamlessly with TSW-770 and TSS-770 series touch screens, providing a 180° visual indication of room availability. This light bar illuminates in vivid green or red to indicate room status, with custom RGB color mixing options for enhanced functionality. With energy-efficient operation at less than 2W, this light bar is an ideal addition to corporate office environments looking to streamline room scheduling.

Key Features

  • Clear Room Availability Status: Offers a 180° LED indicator, glowing green when the room is available and red when occupied, with the option to blink for emergency alerts via Crestron Fusion®.
  • Custom RGB Color Mixing: Supports full RGB color mixing to create nearly any color, with options to alternate, fade, or blink for custom applications through direct configuration or control system programming.
  • Energy-Efficient Design: Operates on less than 2W of power, making it an environmentally friendly addition to your room scheduling system.
  • USB Connectivity: Single-wire USB connection directly to the TSW-770 or TSS-770 touch screens, simplifying installation.
  • Flexible Mounting Options: Compatible with various in-wall, multisurface, and mullion mounting accessories, and available in smooth black or white finish for a professional appearance.

Room Availability Status

The TSW-770-LB connects to the touch screen via USB for easy setup and requires no additional programming. The light bar’s color is managed by the room scheduling software on the touch screen, which syncs with Crestron Fusion or other compatible scheduling software, indicating availability with green and occupancy with red.

Customizable RGB Color Options

For custom control, the TSW-770-LB features RGB LEDs that allow for a full color spectrum by adjusting red, green, and blue elements. Crestron control system programming enables advanced configurations, such as color transitions, fades, and blink patterns for additional room status indications.

Versatile Mounting Options

Compatible with the TSW-70 series mounting kits, the TSW-770-LB can be mounted on walls, surfaces, and mullions using the TSW-70-UMB universal bracket, TSW-770-MSMK multisurface mount kit, and TSW-770/1070-MUMK mullion mount kit, ensuring installation flexibility.

Specifications

  • Illumination: RGB LED supporting alternating red/green for room status or full RGB color mixing
  • USB Connectivity: USB 2.0 connection for TSW-770 or TSS-770 series touch screens
  • Power Consumption: 1.1W typical, maximum 2.5W via USB
  • Operating Temperature: 41 to 104 °F (5 to 45 °C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Construction: Two-piece assembly with a control module and light-diffusing light bar panel
  • Dimensions: H: 4.17 in (106 mm), W: 7.03 in (179 mm), D: 2.26 in (57 mm); extends 0.77 in (20 mm) from mounting surface
  • Finish Options: Smooth black or white finish
  • Regulatory Compliance: CE, IC, FCC Part 15 Class B digital device

The Crestron TSW-770-LB Room Availability Light Bar provides an intuitive, customizable solution for room scheduling, offering energy efficiency and flexible installation options for seamless integration in corporate environments.
