Crestron TSW-1070-LB-B-S Room Availability Light Bar for TSW-1070 Series Touch Screens

Crestron TSW-1070-LB Room Availability Light Bar for TSW-1070 Series Touch Screens

by Crestron
SKU 6511125
€184.00 - €184.00 excl. VAT
€226.32 - €226.32 incl. IE VAT
€184.00 excl. VAT
€226.32 incl. IE VAT
€184.00 - €184.00 excl. VAT
€226.32 - €226.32 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Black Smooth

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

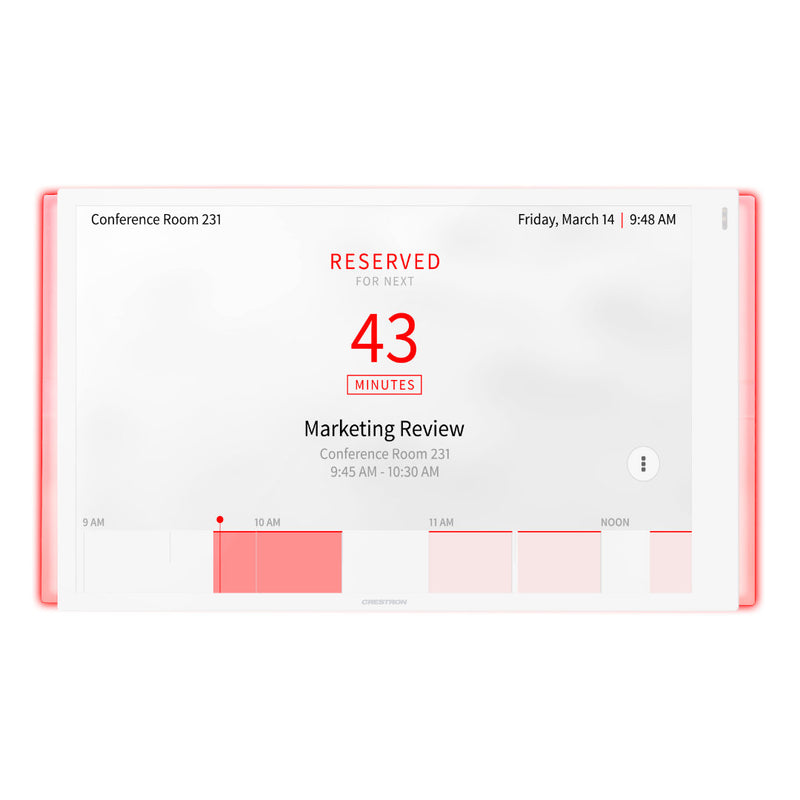

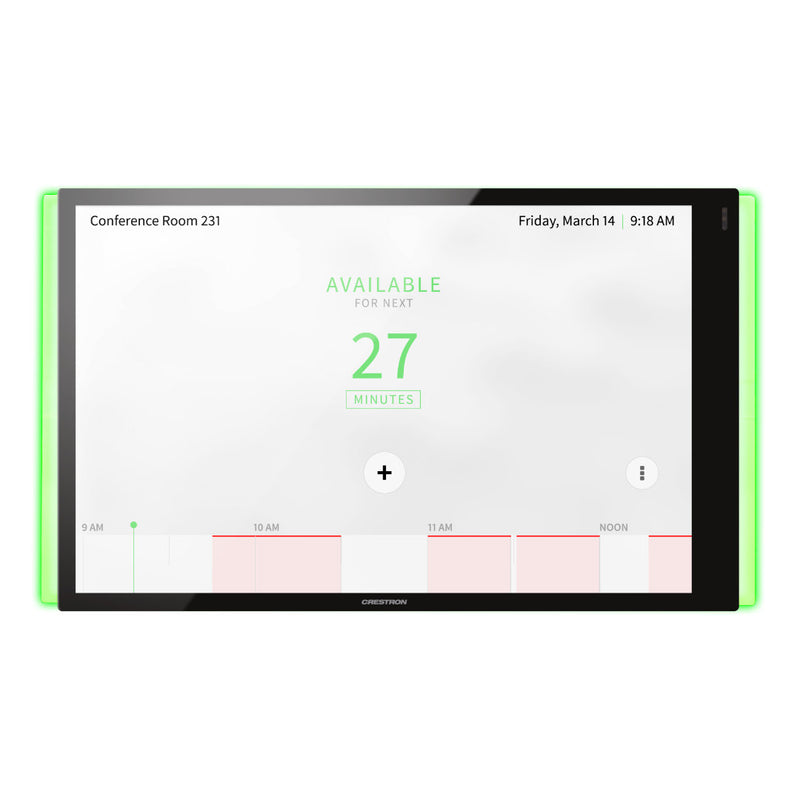

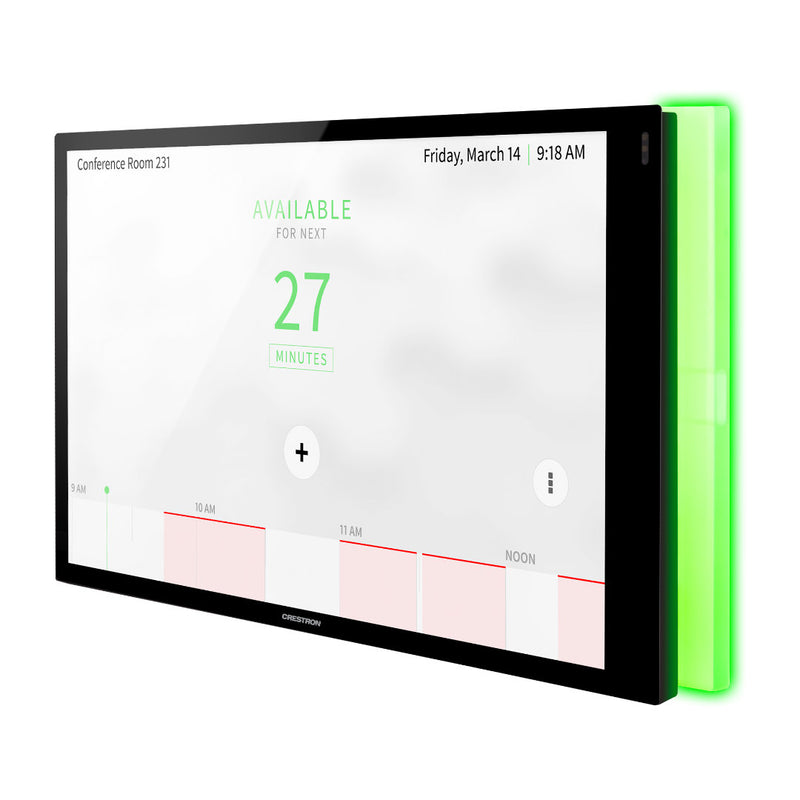

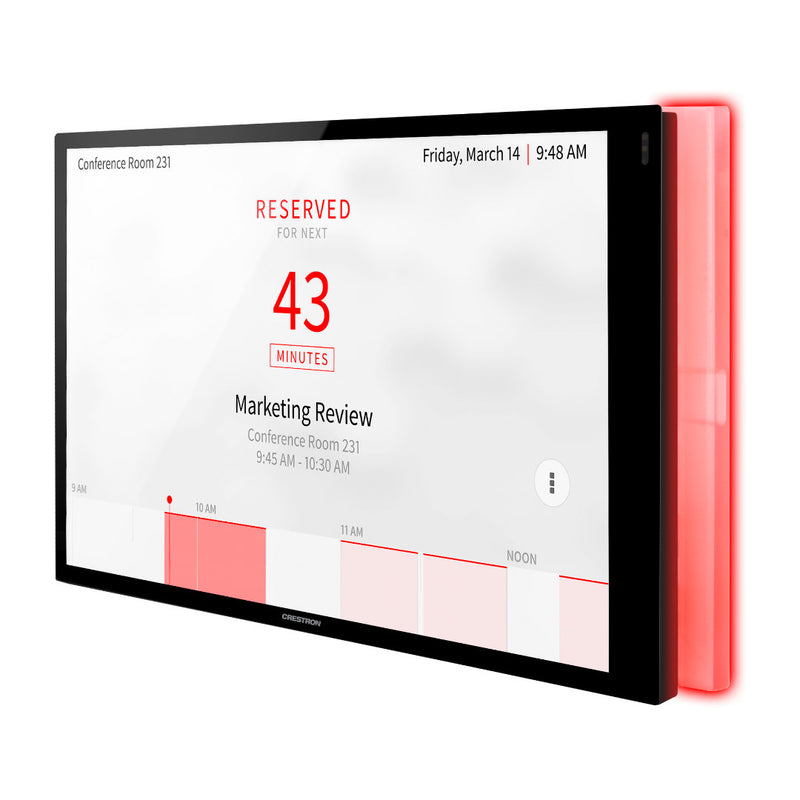

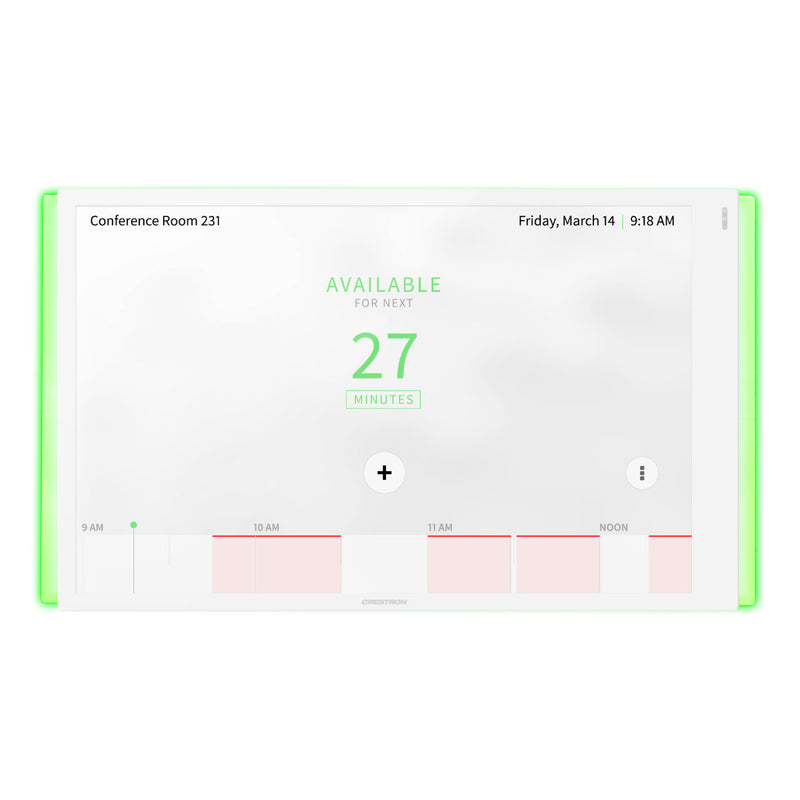

The Crestron TSW-1070-LB-B-S Room Availability Light Bar is designed to provide a clear, 180° visual indication of room availability for TSW-1070 or TSS-1070 series touch screens. This light bar enhances enterprise room scheduling solutions, mounting seamlessly to the back of the touch screen and illuminating bright green or red to show room status. With custom RGB color mixing options, a stylish design, and energy efficiency, it’s an ideal addition to any corporate office environment.

Key Features

  • Visual Room Status Indicator: Offers a 180° room availability display, illuminating green for available and red for occupied, with emergency messaging options via Crestron Fusion®.
  • Custom RGB Color Mixing: Supports RGB LED color mixing, allowing for nearly any color. Colors can be set to alternate, fade, or blink via the touch screen or custom programming.
  • Energy Efficient: Consumes less than 2W of power, providing a sustainable solution for room scheduling.
  • Easy USB Connectivity: Simple single-wire USB connection to the touch screen, compatible with TSW-1070 and TSS-1070 models.
  • Stylish, Versatile Mounting: Mounts to the rear of the touch screen and is compatible with various in-wall, multisurface, and mullion mounting accessories, available in black or white finish.

Room Availability Status

For effortless room scheduling, the TSW-1070-LB connects to the touch screen via USB and requires no special programming. The light bar color is controlled by the room scheduling software, synchronizing with Crestron Fusion or other compatible scheduling platforms to indicate room availability.

Customizable RGB Color Options

The TSW-1070-LB features RGB LEDs for custom color mixing, allowing users to select nearly any color by blending red, green, and blue elements. Custom control system programming can enable additional color effects such as alternating, fading, or blinking.

Versatile Mounting Options

Designed to complement Crestron’s TSW-1070 series, the TSW-1070-LB is compatible with multiple mounting solutions, including the TSW-70-UMB universal bracket, TSW-1070-MSMK multisurface mount kit, and TSW-770/1070-MUMK mullion mount kit, ensuring flexibility across various installation setups.

Specifications

  • Illumination: RGB LED with support for red/green room status or full RGB color mixing
  • USB Connectivity: USB 2.0 connection for TSW-1070 or TSS-1070 series touch screens
  • Power Consumption: Less than 2.5W via USB power
  • Operating Temperature: 41 to 104 °F (5 to 45 °C)
  • Humidity: 10% to 90% RH (non-condensing)
  • Dimensions: Height: 5.82 in. (148 mm); Width: 10.18 in. (259 mm); Depth: 2.28 in. (58 mm); extends 0.84 in. (21 mm) from mounting surface
  • Finish Options: Black or white smooth finish
  • Compliance: CE, IC, FCC Part 15 Class B digital device

The Crestron TSW-1070-LB-B-S Room Availability Light Bar provides an intuitive and stylish room availability solution, ideal for corporate environments that require a flexible, visually impactful scheduling indicator. Its low power consumption, easy mounting, and customizable color options make it a highly functional and efficient addition to any room scheduling system.
