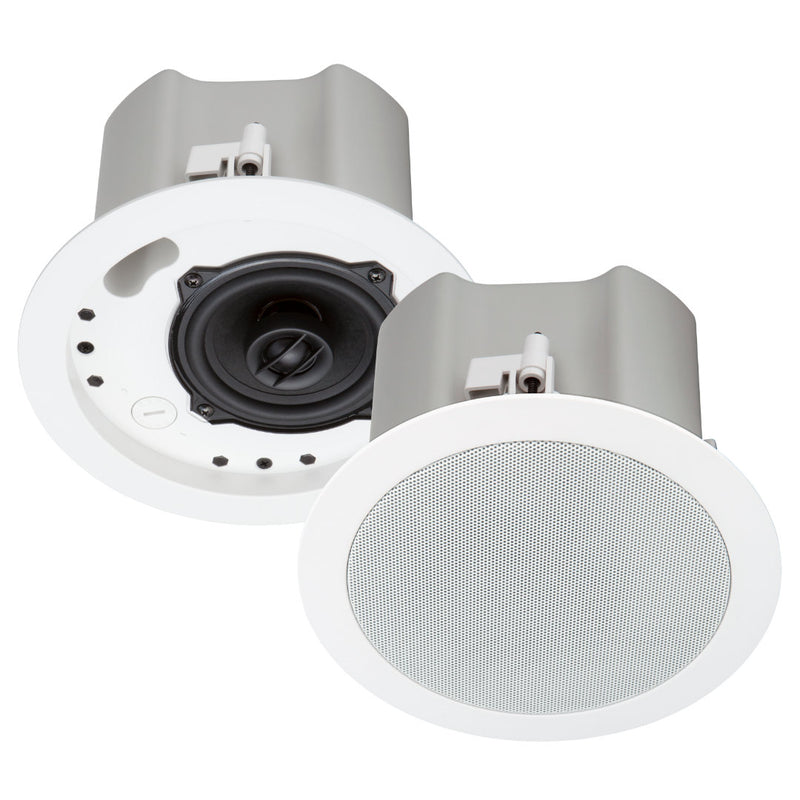

Crestron SAROS Integrator ICI4T 4" In-Ceiling Speaker (Pair)

Crestron SAROS Integrator ICI4T 4" In-Ceiling Speaker (Pair)

by Crestron
SKU 6507583
€268.00 - €268.00 excl. VAT
€329.64 - €329.64 incl. IE VAT
€268.00 excl. VAT
€329.64 incl. IE VAT
€268.00 - €268.00 excl. VAT
€329.64 - €329.64 incl. IE VAT
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: White Textured

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron Saros® Integrator ICI4T is a high-quality 4-inch in-ceiling speaker designed for cost-sensitive commercial installations. Ideal for public address and background music applications, the Saros Integrator ICI4T features a two-way design with a 4-inch woofer and a wide-dispersion dome tweeter, ensuring excellent sound quality and coverage.

Key Features

  • High-performance 2-way in-ceiling speaker
  • 4-inch woofer with wide-dispersion dome tweeter
  • Single front port for enhanced low-frequency response
  • Built-in 30 Watt 70/100V multi-tap transformer
  • Friction-fit metal grille
  • Integral metal back can with built-in cable clamp
  • Accommodates up to two 1/2" or 3/4" flexible conduits
  • Toggle clamp mounting for fast, easy installation
  • Includes tile bridge for installation in a drop-tile ceiling
  • Meets the requirements of UL® 2043 for installation in an environmental air-handling space
  • 30 Watts program power handling
  • 100 Hz – 15 kHz frequency response (±3 dB)
  • 120° nominal coverage pattern
  • Available in white only
  • TAA Compliant

Performance

The Saros Integrator speakers by Crestron® offer a high-quality in-ceiling speaker solution for cost-sensitive commercial installations. Designed for public address and background music applications, Saros Integrator speakers feature a unitized, plenum-rated construction designed to enable quick installation in drop-tile and drywall ceilings.

Installation

The Saros Integrator ICI4T model is a 2-way in-ceiling speaker featuring a 4-inch woofer and 3/4-inch dome tweeter. It is designed to enable quick installation and reliable performance in restaurants, retail spaces, convention facilities, airports, and office buildings. A built-in 30 Watt multi-tap transformer allows for use with 70 and 100 Volt distributed speaker systems.

Specifications:

  • Woofer: 4 inch (102 mm) cone, ported
  • Tweeter: 0.79 inch (20 mm) dome
  • Impedance: 8 Ohms nominal with transformer set to “8Ω”
  • Transformer Taps: 3.75W/7.5W/15W/30W at 70V; 7.5W/15W/30W at 100V
  • Frequency Response: 100 Hz to 15 kHz (±3 dB)
  • Frequency Range: 80 Hz to 20 kHz (-10 dB)
  • Power Handling: 30 Watts program
  • Sensitivity: 89 dB @ 1W/1m
  • Coverage: 120° conical (nominal)
  • Input: (1) 4-pin 5 mm detachable terminal block with screw-down flanges; Speaker input with parallel pass-through; Maximum Wire Size: 12 AWG
  • Transformer Tap: (1) Screwdriver-adjustable rotary switch on baffle; Used to select 70/100V tap or 8 Ohms (bypass)

Weights & Dimensions:

  • Diameter: 8.11 in (206 mm) not including toggles
  • Depth: 5.87 in (149 mm)
  • Weight: 4.9 lb (2.3 kg)
