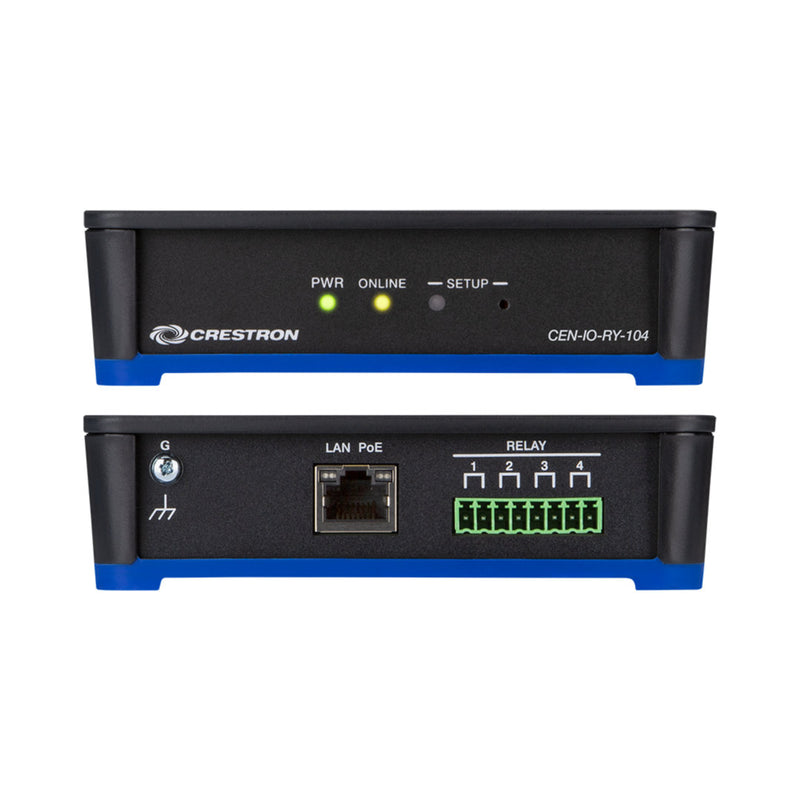

Crestron CEN-IO-RY-104 Wired Ethernet Module with 4 Relay Ports

Crestron CEN-IO-RY-104 Wired Ethernet Module with 4 Relay Ports

by Crestron
SKU 6507960
€416.00 - €416.00 excl. VAT
€511.68 - €511.68 incl. IE VAT
€416.00 excl. VAT
€511.68 incl. IE VAT
€416.00 - €416.00 excl. VAT
€511.68 - €511.68 incl. IE VAT
€ via quote
Availability: 4 in stock

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron CEN-IO-RY-104 is a compact, cost-effective wired Ethernet I/O module designed to expand the available relay ports within a commercial or residential system. It features four relay ports and can be installed easily using the included mounting bracket, making it suitable for both new and retrofit installations. The CEN-IO-RY-104 supports reliable communication and control via a local network connection, and it is powered via PoE (Power over Ethernet).

Key Features

  • Compact, cost-effective wired Ethernet I/O module
  • Provides four relay ports
  • Installer setup via Crestron Toolbox™ software or web browser
  • Supports TLS 1.2, Local Authentication, and SSL security protocols
  • PoE (Power over Ethernet) network powered
  • Compact, stackable “IFE micro” form factor
  • Surface or DIN rail mountable
  • Available rack mount and pole mount options

Security Protocols

The CEN-IO-RY-104 supports the following security protocols to protect against service interruptions and malicious intrusions:

  • TLS 1.2 for web server and control system connections
  • Local Authentication for console, web server, and control system connections
  • SSL for console connections

Power over Ethernet

Using PoE technology, the CEN-IO-RY-104 receives its operating power directly through the LAN wiring, eliminating the need for a local power supply or dedicated power wiring. A PoE injector (PWE-4803RU) can be connected in line with the LAN cable at any convenient location. Crestron PoE switches (CEN-SW-POE-5 or CEN-SWPOE-16) can also be used to provide a comprehensive networking solution with built-in PoE. All PoE injectors and switches are sold separately.

Integrator Friendly Enclosure

The CEN-IO-RY-104 features the Crestron IFE form factor, a compact “Integrator Friendly Enclosure” design that fits almost anywhere and supports various installation options. Its shape allows multiple CEN-IO and other IFE compliant devices to be stacked together. Using the included mounting bracket, it can be fastened to any flat surface or snapped onto a standard DIN rail. Rack mount and pole mount kits are also available.
