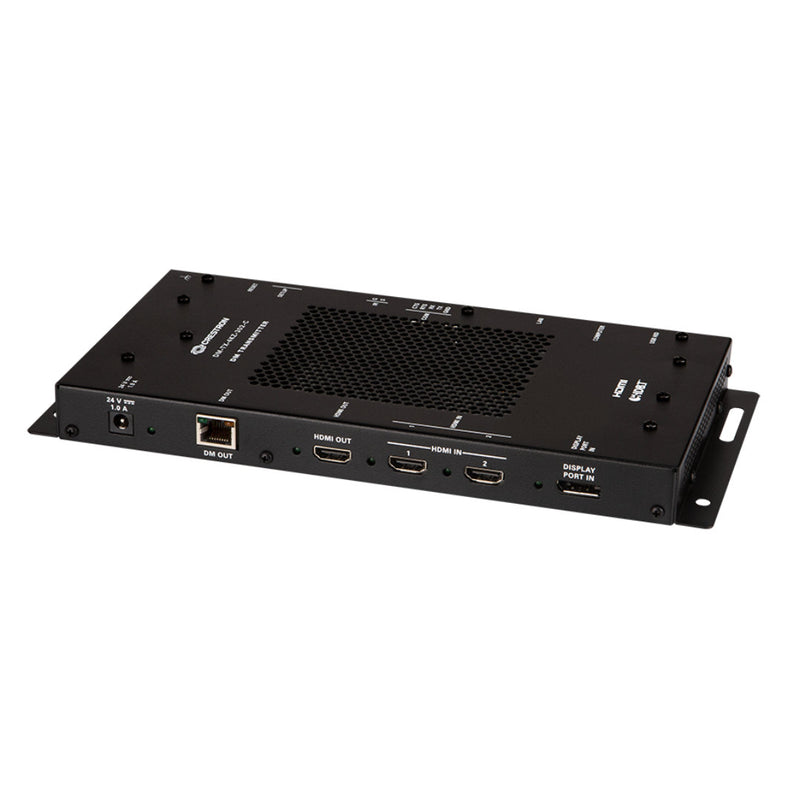

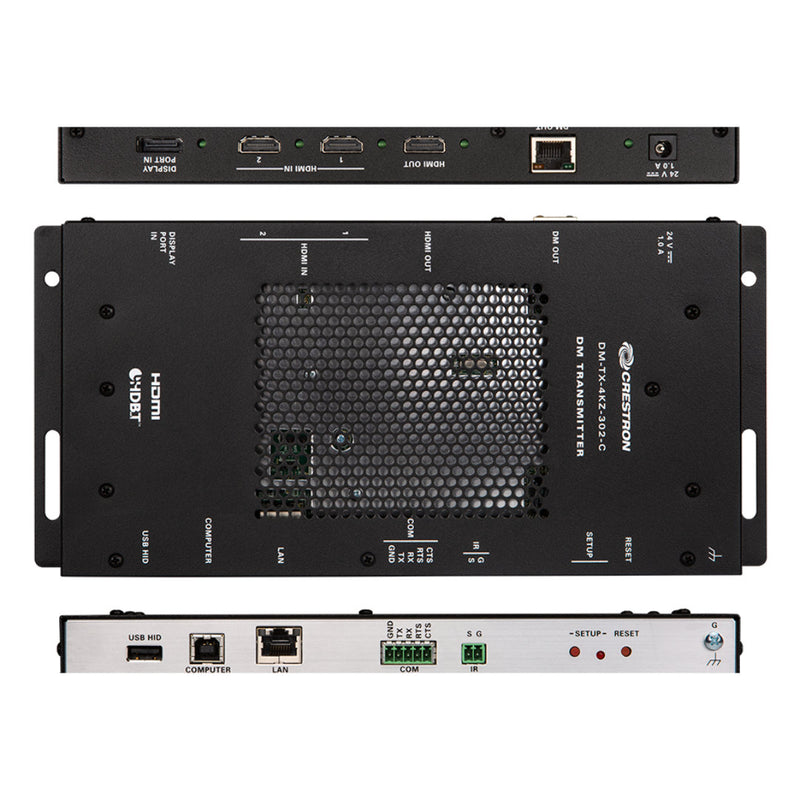

Crestron DM-TX-4KZ-302-C DigitalMedia 8G+ 4K60 HDR Transmitter 302

Key Features

• 4K DigitalMedia 8G+® transmitter with HDR support
• Built-in 3x1 AV switcher with two HDMI® inputs and one DisplayPort™ input
• QuickSwitch HD™ technology for fast and reliable input switching
• Transmits video, audio, control, networking, and power over a single CAT cable
• Supports 4K60 4:4:4 and HDR10 video resolutions
• HDBaseT® Certified for compatibility with other HDBaseT devices
• Local HDMI output for connecting to a nearby display
• Handles Dolby® TrueHD, Dolby Atmos®, DTS-HD®, DTS:X®, and uncompressed 7.1 linear PCM audio
• Ethernet connectivity for LAN access and device control
• USB HID signal extension for remote control of a connected computer
• CEC, IR, RS-232, and Ethernet control ports for integrated device management
• Compact, surface-mountable design for flexible installation
• Powered via PoDM+ or HDBaseT PoE+, with optional power pack

4K60 4:4:4 & HDR Support

The DM-TX-4KZ-302-C supports full 4K60 4:4:4 video resolution and HDR10, ensuring the highest quality video with vibrant colors and deep contrast. Utilizing Crestron’s DM 4KZ technology with VESA® Display Stream Compression (DSC), this transmitter handles the extreme bandwidth requirements of 4K60 4:4:4 video signals, providing visually lossless performance without compromising on image quality.

HDBaseT® and DigitalMedia 8G+® Compatibility

This transmitter is fully compatible with HDBaseT® standards, allowing it to connect directly to HDBaseT-certified displays and devices. It also supports Crestron DigitalMedia 8G+® technology, providing seamless integration into existing DM systems and enabling transmission distances of up to 330 ft (100 m) using Crestron DMUltra Cable.

Multimedia Interface and AV Switching

The DM-TX-4KZ-302-C features a 3x1 AV switcher with two HDMI inputs and one DisplayPort input, supporting resolutions up to 4K60 4:4:4. The switcher automatically manages HDCP keys for fast, reliable switching between connected sources, making it an ideal solution for environments with multiple AV devices.

Local HDMI Output and USB Signal Extension

A local HDMI output allows the pass-through of the selected video signal to a nearby display or sound system, ensuring that video content can be viewed locally as well as remotely. Additionally, the transmitter supports USB HID signal extension, enabling remote control of a connected computer using a USB keyboard and mouse.

Ethernet Connectivity and Embedded Device Control

Integrated Ethernet connectivity allows the DM-TX-4KZ-302-C to be connected to a local network, providing LAN access for connected devices. The transmitter also includes CEC, IR, RS-232, and Ethernet control ports, enabling integrated control of connected devices through a Crestron control system.

Compact and Versatile Design

The DM-TX-4KZ-302-C is designed for flexible installation in a variety of environments. Its compact, surface-mountable design allows it to be installed beneath a conference table, inside a lectern, or within an equipment rack. It can be powered via PoDM+ or HDBaseT PoE+, with an optional power pack available for additional flexibility.

The DM-TX-4KZ-302-C is a robust solution for 4K60 4:4:4 HDR video transmission, offering seamless integration with Crestron DigitalMedia systems and HDBaseT devices, making it an ideal choice for any professional AV installation.
