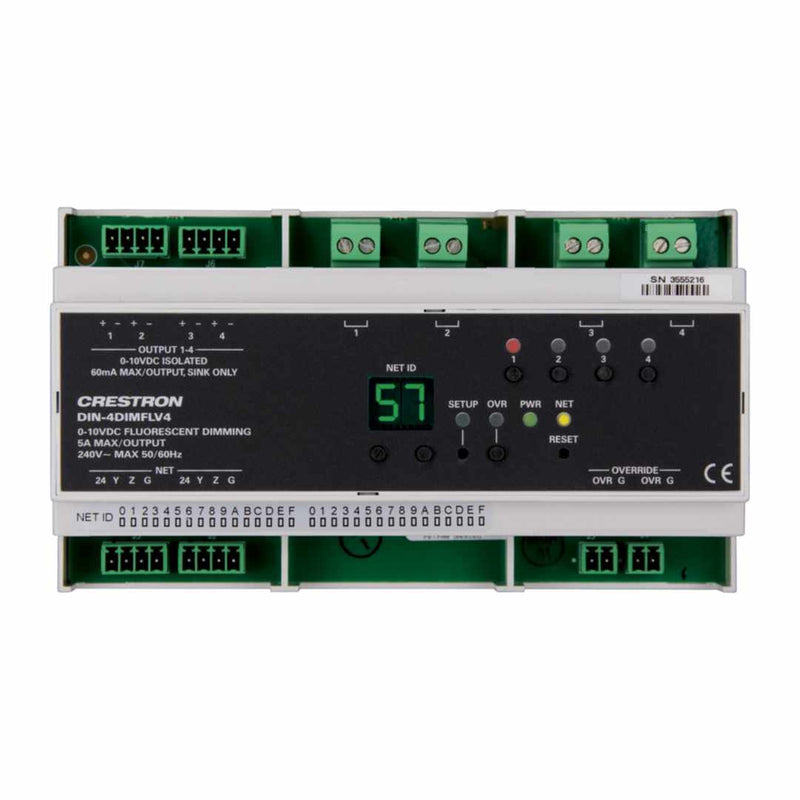

Crestron DIN-4DIMFLV4 DIN Rail 0-10V Dimmer (4-Channel, 4 Feeds)

Crestron DIN-4DIMFLV4 DIN Rail 0-10V Dimmer (4-Channel, 4 Feeds)

by Crestron
SKU 6501749
€660.00 - €660.00 excl. VAT
€811.80 - €811.80 incl. IE VAT
€660.00 excl. VAT
€811.80 incl. IE VAT
€ via quote
€ via quote
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

Don't worry - the price isn't a secret, we're just required* to share it with you directly. Click 'Request a quote' and we'll get right back to you.

*This may be because products require customisation or professional installation services (which we provide), or are restricted from online sale.

The Crestron DIN-4DIMFLV4 is a 4-channel 0-10V dimmer designed for versatile lighting control. Suitable for both 120V and 220-240V applications, this dimmer supports dimming 0-10V drivers and ballasts, as well as switching non-dimmable loads up to 5A. Ideal for various lighting environments, the DIN-4DIMFLV4 ensures reliable performance and easy installation with its DIN rail mounting.

Key Features

  • 4 channels of 0-10V dimming control
  • Supports 120V and 220-240V, 50/60Hz applications
  • Allows switching of lighting and exhaust fans
  • Includes an override input
  • Communicates using Cresnet® network
  • Setup via the front panel or through software
  • Offers programmable functionality via a Crestron control system
  • Mounts on a 9M wide DIN rail
  • CEC Title 24 2013 Compliant

Override Input

The override input allows an external contact closure to momentarily override the control system program, setting each channel output to its preset level. Levels can be adjusted and saved locally from the front panel or remotely via software.

DIN Rail Installation

The DIN-4DIMFLV4 is designed for easy installation on a standard DIN rail. Wiring connections are made using screw terminals along the bottom, ensuring they are accessible from the front for easy setup and servicing. The front panel remains accessible for controls and indicators when installed in enclosures with 45mm cutouts.

Cresnet® Wired Network

The DIN-4DIMFLV4 communicates with a Crestron Control System using the Cresnet control network. It features a pair of Cresnet ports for easy daisy-chaining of multiple DIN Rail Series automation control modules.
