Home Cinema Installation: 7 Decisions Before You Build
Plan the room before you buy the equipment. A home cinema installation starts with the seating, screen, speaker positions, cable routes and equipment space because those decisions affect the walls, ceiling, power and ventilation.
Once plasterboard is closed, moving any of them becomes disruptive. The equipment can still change later. The room geometry and hidden infrastructure are much harder to change.
1. Decide whether this is a cinema room or a media room
A dedicated cinema room is designed around film viewing. Light can be controlled, the screen wall can be built for the chosen display, and the speakers and acoustic treatment can sit where the room needs them.
A media room still has to work as a living space. Windows, furniture, doors and everyday use will place limits on screen position, speaker placement and sound isolation. Both can work well, but they should not be designed from the same drawing.
If you are still deciding between projection and a large display, read Projector vs TV for a Home Cinema before the screen wall and seating layout are fixed.
2. Mark the main seats before sizing the screen
The main listening position is the reference point for the picture and sound. Mark the seat positions on the floor plan first, including any second row, aisle and door swing. Then check sightlines to the full screen from every seat.
This is why choosing the largest screen that fits the wall is the wrong order. The screen has to suit the viewing distance and the room, while the speaker positions must still work around it. CEDIA's homeowner guidance also treats room size and layout as the starting point for screen size and speaker placement.
3. Choose the screen and projector position together
For a projector, screen width and projector position are one decision. Throw distance varies by model and lens, so the final projector must be checked against the manufacturer's data before the ceiling mount, screen recess or rear projection position is built.
Allow for the finished ceiling, any bulkhead, lens alignment, ventilation and a service route to the projector. A projector that fits the room on paper can still fail if a beam, light fitting or ceiling detail blocks the planned position.
For a TV or large-format display, plan the wall structure, bracket location, power, signal cables and a clear route for future cable replacement. The display should not be used to hide an equipment location that cannot be reached afterwards.
4. Fix the speaker layout before plasterboard
A speaker count is not a cable plan. The design needs an exact location for each front, centre, surround, rear and height speaker, referenced to the main seating position.
Dolby's speaker setup guides show how layouts such as 5.1.2, 5.1.4 and 7.1.4 are built around the listener. The right layout still depends on the room, the number of seats, the processor and the performance target.
Confirm the speaker type before walls and ceilings are closed. An in-wall speaker, an in-ceiling speaker and a surface-mounted speaker need different backing, depth and finish details. Cable positions should follow the reviewed layout, not a rough assumption that can be corrected during installation.
5. Plan the room around sound, not only the speakers
The room adds its own sound. Hard surfaces, glass, doors, ceiling shape and the distance to neighbouring bedrooms all affect the design. Acoustic treatment and sound isolation are separate questions. Treatment controls what happens inside the room. Isolation controls how much sound reaches the rest of the house.
Subwoofer provision also needs more than one convenient socket at the front. The final number and position are project-specific, but it is sensible to plan power and signal routes to the candidate locations before the room is finished.
6. Draw the cables, power and equipment location

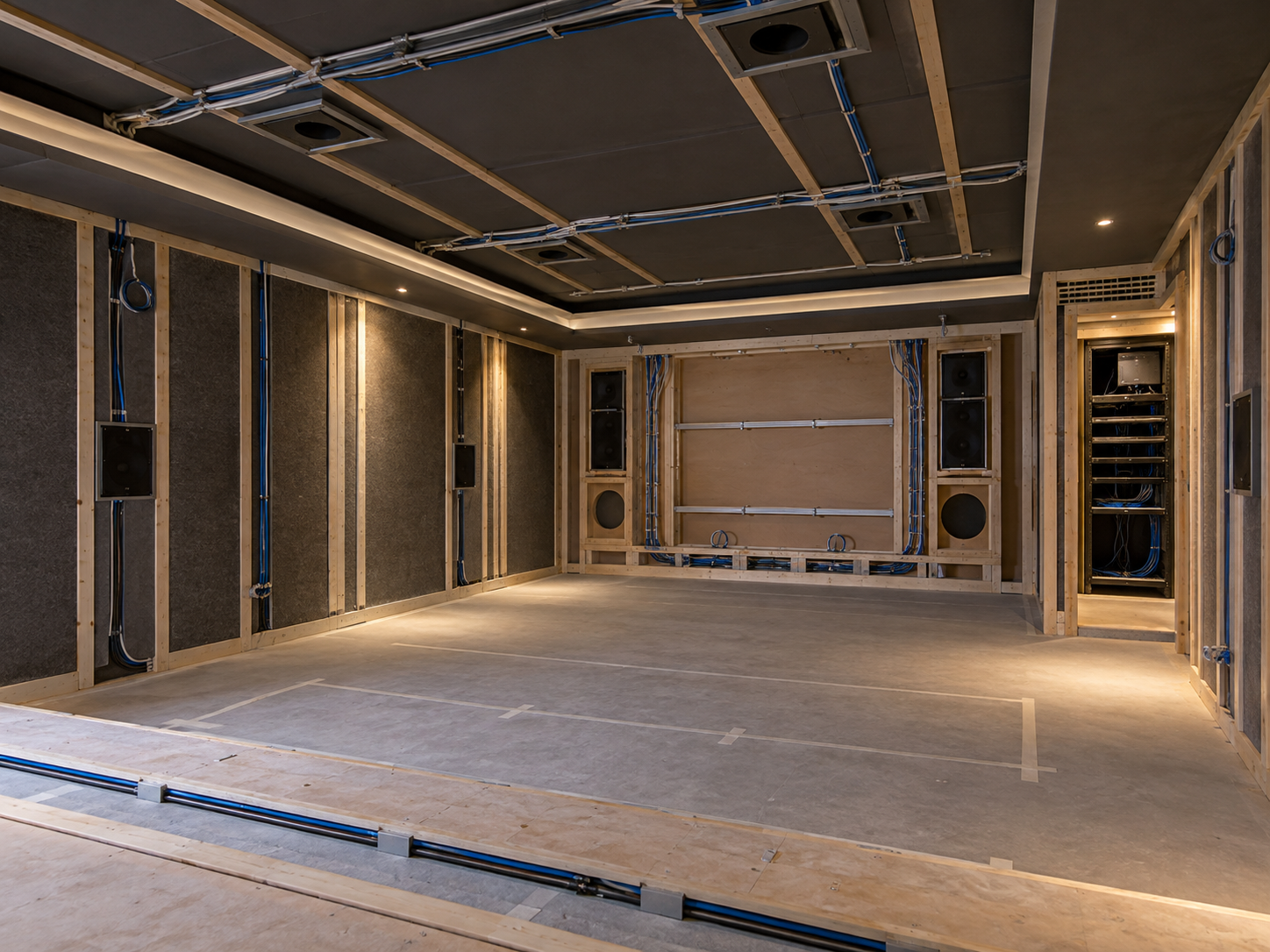

The first-fix drawing should show every speaker cable, network cable, control cable, projector or display feed, subwoofer route, lighting circuit and power point. It should also identify where those cables end.
The AV equipment needs a location with enough depth, ventilation, service access and power for the final system. It should not be boxed into a warm cupboard or placed where every service visit requires moving furniture. Leave a replaceable route between the equipment, projector and screen wall because video connections change faster than the room.
The final cable types, conduit sizes and power requirements must be set from the chosen system and checked with the electrician. A generic cable schedule cannot cover every cinema design.
7. Put lighting, ventilation and control on the same plan
Lighting affects both the picture and how people move through the room. Plan separate circuits for task lighting, low-level entry or step lighting and the viewing scene. Keep fittings and control gear away from projector sightlines and speaker positions.
Projectors and AV electronics produce heat. The equipment space and the room need a ventilation strategy that does not add distracting noise. Controls should remain simple enough that the cinema starts without a sequence of separate remotes and apps.
What to bring to the design meeting
- Dimensioned floor plans and ceiling heights.
- Door, window and radiator positions.
- The number of seats and whether a second row is planned.
- Your preference for a dedicated cinema or a shared media room.
- Any projector, screen, speaker or control equipment already owned.
- Adjacent bedrooms or living spaces where sound transfer matters.
- The current build stage and the date first fix is due.
